Hi Dave , yes please to both discs and calipers  , let me know what you want and how you want it paid , I'll need courier if that is okay as I don't think your close to me .

Cleaning them up and servicing them isn't an issue either , I'm all up for that part .

Cheers for digging them out bud . Sam

Quote from: Dave DND on March 19, 2025, 10:36:19 PMGot a pair of font discs too - look like they were brand new and never used before the car was laid up over 20 years ago in a wet garage - Surface rust only
Can get pictures if interested?

Evening Deejay , my sister is going to a friends at Chichester this weekend , all way from here , I'm currently in negotiations with her to drive the extra 30 minutes to you ......

Quote from: DeeJay on March 17, 2025, 09:18:46 AM

quote author=DeeJay link=msg=156114 date=1742203126]

[/quote]

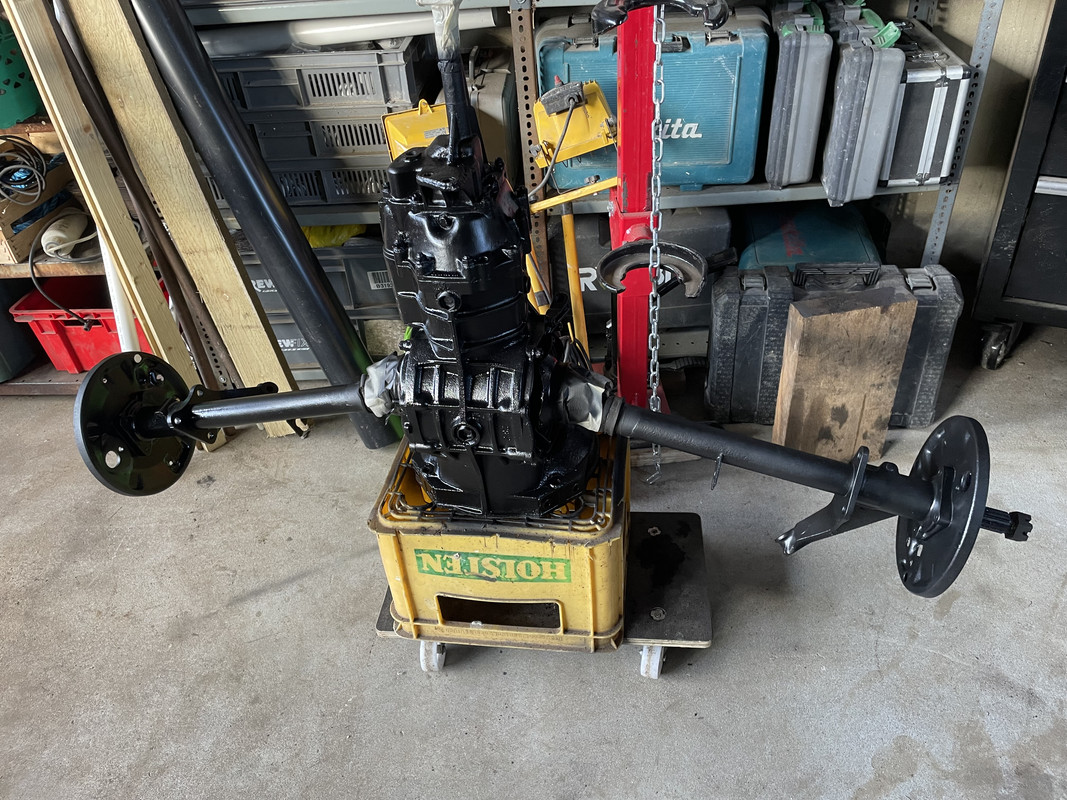

And here it is , all painted up now , etch primed and so far 4 coats of matt black upol ...new boots ready to go on , just waiting for delivery of the crimp tool for the locking rings on the boots .. Now going to stash it safe until I need it .

Hi guys and gals , I'm on the hunt for 2 front callipers for a ball joint front beam  , I have the rest of the mountings etc , just lacking the actual callipers , happy if they need a bit of tidying up etc . Posted ideally , paid by however you want .

Cheers Sam

Cheers for that Rob , I should be okay operating the way you describe , I'm not to fussed by having to come to a standstill , as I have so little body weight , slipping a little in 2nd to keep rolling shouldn't be an issue .
Snoop , I see what you mean , that isn't cheap but if it saves a mess and failing brakes , I might have to invest , as there certainly wasn't any in before I stripped it out . Just the shoes , brackets , calipers and brake adjusters .

Paul , thanks for the link , I'll take a look and see if I can find any spec for this setup ,  I didn't think to use Samba for diagrams . I've mined the hell out of it for front beam info , but not brake setup

Going by what you guys have said , that Would it be possible that I caused the oil leaks by undoing the main hub nut , letting the pressure off the seals ?

Cheers again guys 👍🏼

Cheers Paul and Snoop , I'll take a look on my manual and see if I can make sense of the assembly , admittedly the manual is a 72 onwards , but I know Heritage do exploded diagrams , so make check there .

The passenger side  it was okay to undo , I had a bit of a fight with there driver side .... Could I of upset them in trying to undo them ?  I had drained the gear box down before all this but expected there to still be some in the drive shaft tubes . I just don't want to get it all back together and in the rail and find it still leaks .

Cheers Sam

The rail this is going back into is going to be a light off road but more I road vehicle , so even if it's a bit fiddly from 1st to 2nd isn't overly ans issue and if it is , I can always chuck one of the other AB boxes in .

As a slight side mission on this , I've cracked the hub off and it seems a small amount of oil has made it into the hub assembly from the shaft , is this normal or should I strip the ends and replace the seals ?

Cheers in advance

Quote from: farmer rob on March 16, 2025, 08:25:36 AMThey take a bit of cleaning up    but nice job. I've been thinking, the early 1200 box's might have better gearing for off roading but I seem to remember that some of them didn't have the synchromesh on first gear! which would be more of an issue when off roading. On the road, you only really need first gear when you come to a stop.

Rob

Cheers for the swift reply Rob ,  and a big thankyou for answering the query , and given what you've said , it's seems something has finally gone in my favour ... I have two other S/A gear boxes , 1 torn down and one college and ummed and arrhhhed about chucking one of those in ,  now I'm glad I didn't ...

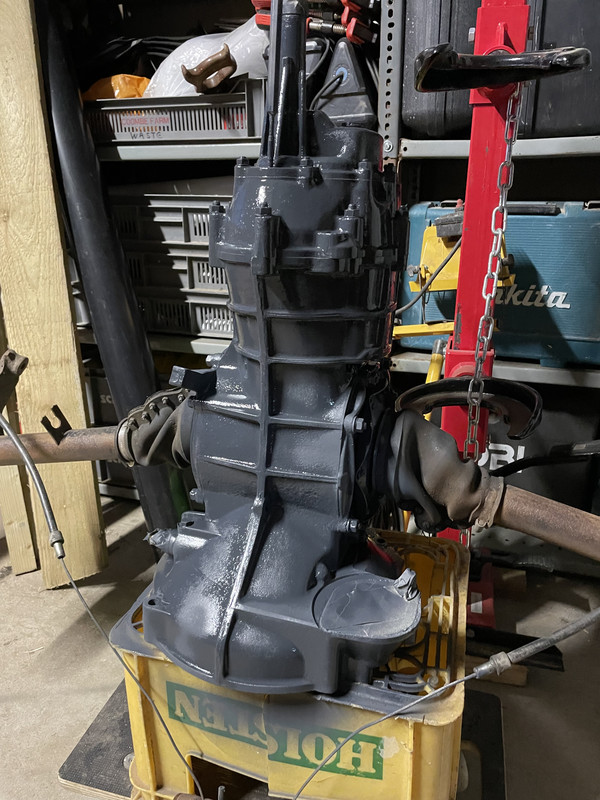

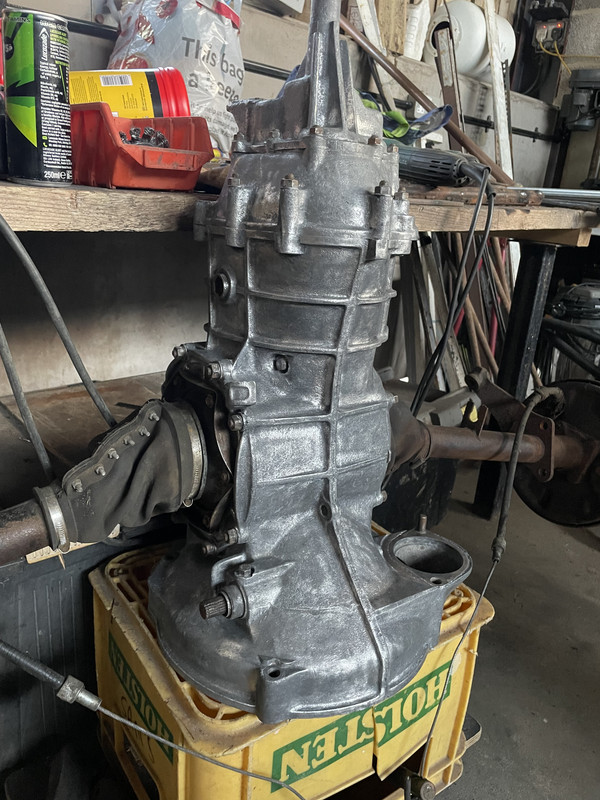

I've managed to clean it up nicely and currently have a coat of etch primer on it , took me the best part of 4 or 5 hours of cleaning . Just got the drive shaft tubes and hub back plates to go now .

Once again , cheers for the help 👍🏼

Quote from: farmer rob on March 15, 2025, 05:30:15 PMThat is an early 1200 gearbox! So better suited for off roading with it's lower overall ratio's.

Quote from: farmer rob on March 15, 2025, 05:30:15 PMThat is an early 1200 gearbox! So better suited for off roading with it's lower overall ratio's.

Afternoon all ( how inclusive is that ) . So I'm currently prepping for a paint strip and redo of my 2nd rail , and currently just prepping the gear box for a lashing of paint , ie hours of wire brushes in a drill . This is a swing axle with a 2 bolt nose cone . It does have any Lettet prefixes before its numbers , .

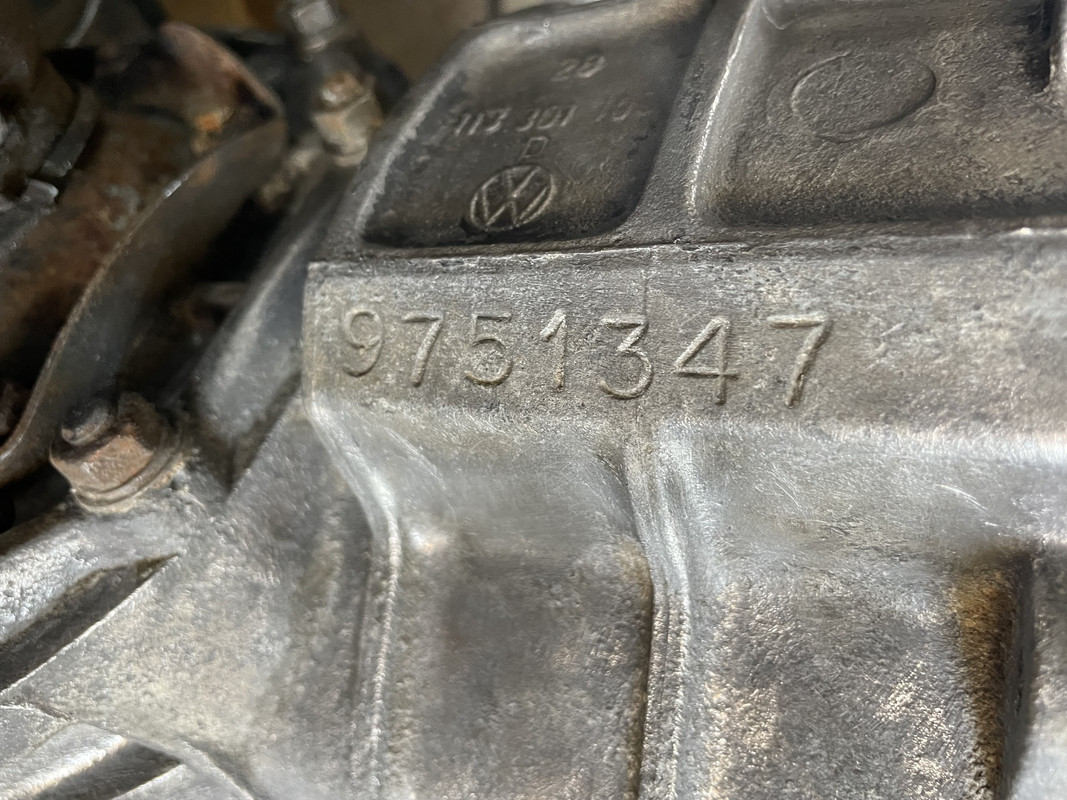

I've compared it to the other two swing axle boxes and all the casting numbers are the same . However its serial number has no lettering and there is no room infront of the numbers to have any . It also does not look like it's been re ground and a new number applied as the casting lines are still prominent ...

What do you guys make of it ?! Ie is iit just a normal swing axle or could it be some thing a bit different ratio wise ?

Cheers in advance

Quote from: Paul1953 on March 13, 2025, 09:17:32 AMHave a word with Shipley they are very cost effective and efficient. Probably less than your round trip fuel costs.

Cheers mate , I will do , 👍🏼

[im interested mate , I've just got to work out a way to get them to Somerset .

quote author=DeeJay link=msg=156059 date=1741801553]
Price drop - £50 the pair.
[/quote]

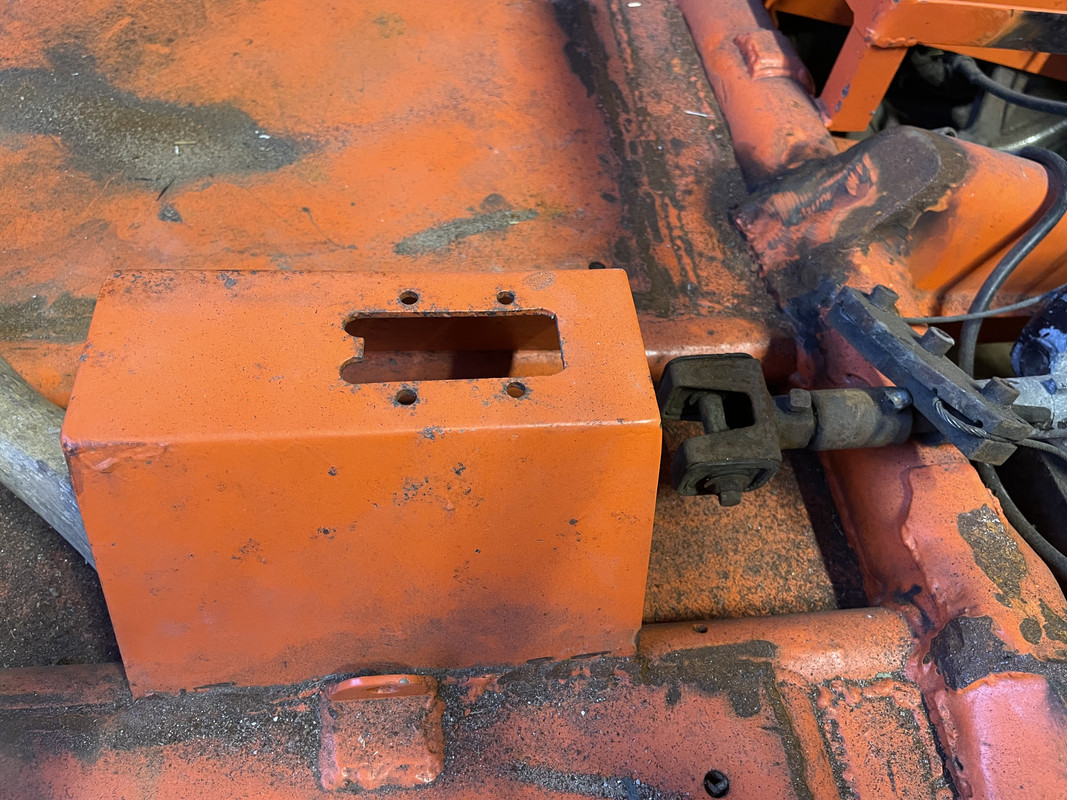

Afternoon all , I'm looking to see if anyone recognises this type of handbrake mounting / configuration , this is a sandrail and the previous owner obviously intended on using a particular handbrake set up going by the way the plate has been fabricated .

I can always rework it , but easier if I can just. Buy what he / she had in mind .

Cheers in advance , Sam

[hi mate , yes they are , message me your details and I'll send them over 👍🏼

quote author=madjack link=msg=156007 date=1741441370]

Quote from: Sam101 on August 03, 2024, 06:49:14 PMMore free plus postage , don't look ever used . The chrome on the backs is a bit bobbly but not gone through

still seems a good idea. Are these still available?
[/quote]

Where abouts are you ?

quote author=bulliporker link=topic=15397.msg155685#msg155685 date=1738417731]
anyone recently   had any sway away adjusters welded into there front axle      what would you   say is the right price for getting this done
[/quote]

Quote from: snoopy on September 30, 2024, 09:17:26 PM
a good buy could be a UVA or Kommando fame not looked at any photos lately to be 100% either way team orange will be happy

I've got to admit I bought it as a "sandrail" / uva but I'll be honest I'm not to familiar with the Kommando .

It does have the exactly same fibreglass panels as my other one . They are currently off the orange one as I'm having to tackle some really really bad stick welding effort where someone has decided to weld some 1.6mm sheet on the top of the tube frame floor . Like seriously rip your face off if you fell on it ...

An hour or so grinding done and now a couple of hours tig welding as I want to fuse it better but not add any more material ..
