ROLL CAGE TUBE SIZE

Started by Slapading, September 24, 2024, 03:40:08 PM

« previous - next »

Slapading

Newbie
Posts: 8
Ranchero
Location: Peterborough
HI THERE EVERYONE. WHAT SIZE CDS TUBING ARE PEOPLE USING FOR THE MAIN HOOP AND REST OF CAGE. JUST LOOKING IN GETTING ONE FABRICATED FOR MY BUGGY

CHEERS ALL

HUDGE BUGGY

***
Buggy Meister
Posts: 1,573
GP Mk2 Super Buggy LWB
Location: Lowestoft, Suffolk
38mm seems to be the norm for non competition use

WE GET OLD COS WE STOP PLAYING

HUDGE BUGGY

***
Buggy Meister
Posts: 1,573
GP Mk2 Super Buggy LWB
Location: Lowestoft, Suffolk

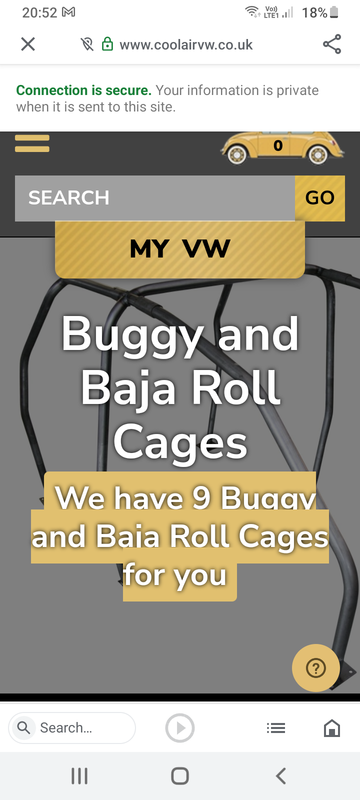

Ready made

WE GET OLD COS WE STOP PLAYING

Doon L001

Forum Moderator
******
Buggy Queen
Posts: 4,972
DOON LWB
Location: Nr Leek Staffordshire
I've used 3inch 75mm stainless. Bends pre made and welded in
Whatever floats your boat

Generally the bigger the tube the harder it is to get a good bend and the bigger the radius will be

As Hudge says if notvfor competition then whatever fits and looks right
Dave - Doon LWB Name "Weather Permitting"
Poco Loco!

snoopy

MBC Moderator
******
Buggy Expert
Posts: 11,175
Kango ss/ Jas lwb
Location: evesham. 07757010432
50.mm or 2" CDS tubing if you want it stronger like a competition cage but seamed tubing is widely used, 38mm like Hudge says will give you more room inside

Brookster

***
Buggy Obsessed
Posts: 380
Doon SWB
  1. Brookster
Location: Scawby
#5
i used to buy my tube from here for my cages which had to be MSA Spec but i would also use for road use and safety  ;-)up

http://www.ppcages.com/

cut to order , they will also bend it to your spec

50.8 mm CDS i use

Minimum Dimensions
Mandatory tubular members

45mm x 2.5mm (1.750″ x 12swg) or 50mmx 2.0mm (2.000" x 14swg).

38mm x 2.5mm (1.500" x 12swg") or 40mm x 2.0mm (1.6" x 0.083").(For roll cages/bars approved prior to 1.1.95).

Optional tubular members

38mm x 2.5mm (1.5" x 0.095") or 40mm x 2.0mm (1.6" x 0.083").

1.4.2. In selecting the steel, attention must be paid to obtaining good elongation properties and adequate weldability.

1.4.3. The tubing must be bent by a cold working process and the centreline bend radius must be at least three times the tube diameter. If the tubing is ovalised during bending, the ratio of minor to major diameter must be 0.9 or greater.
