I thought it was about time I brought everyone up to date with my buggy.
About 2 years ago I was looking to get a buggy, Iíve always fancied one right form when I was a child.
So the ebay trawl started, and as luck would have it there was one for sale 15 miles down the road, so  I set off to take a lookÖ
The buggy was a LWB RAT, I didnít know it was a RAT, but I like the look of it and it was correctly registered as a buggy, bonus ☺

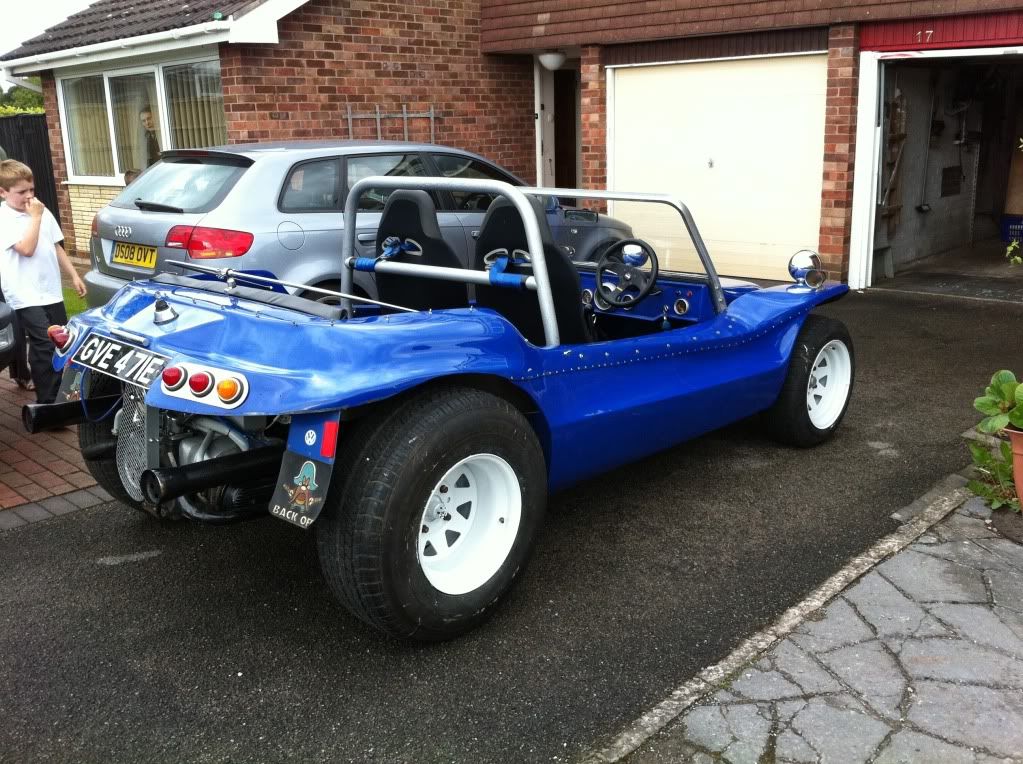

I deal was done and I was the proud owner of this.  :D

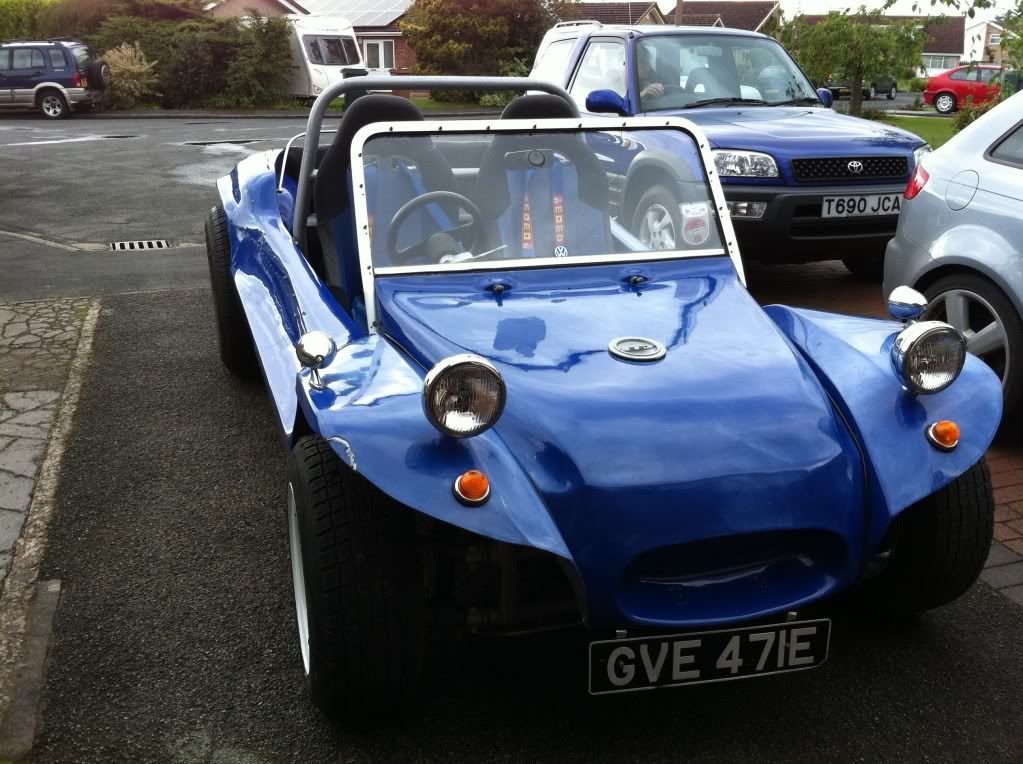

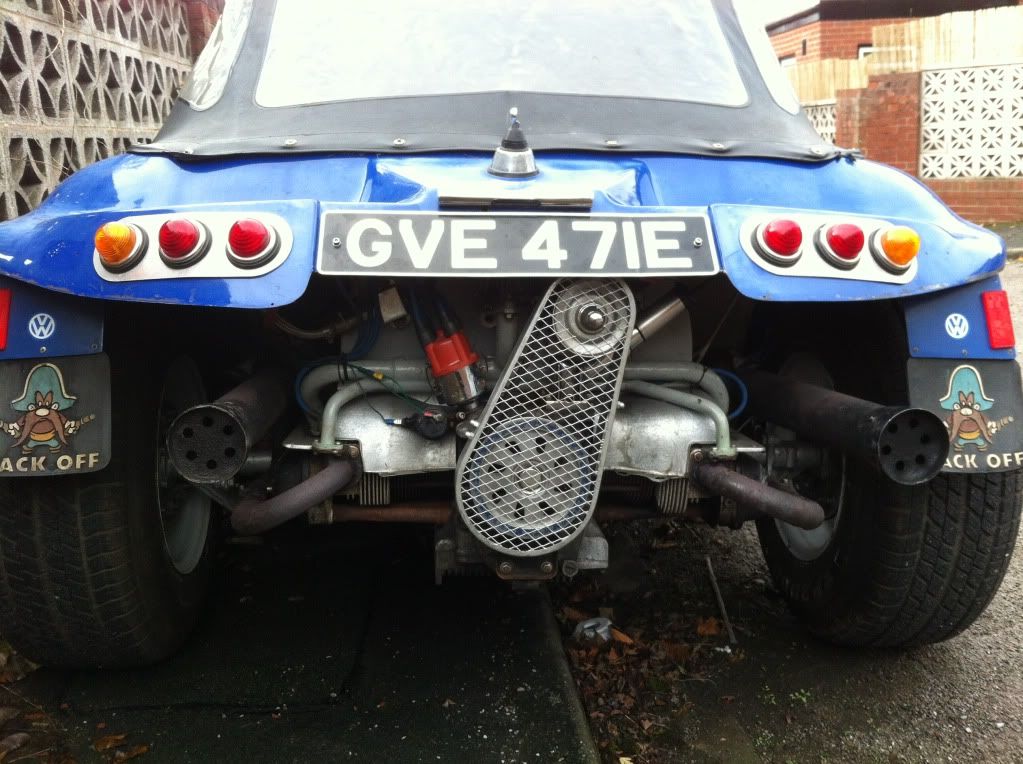

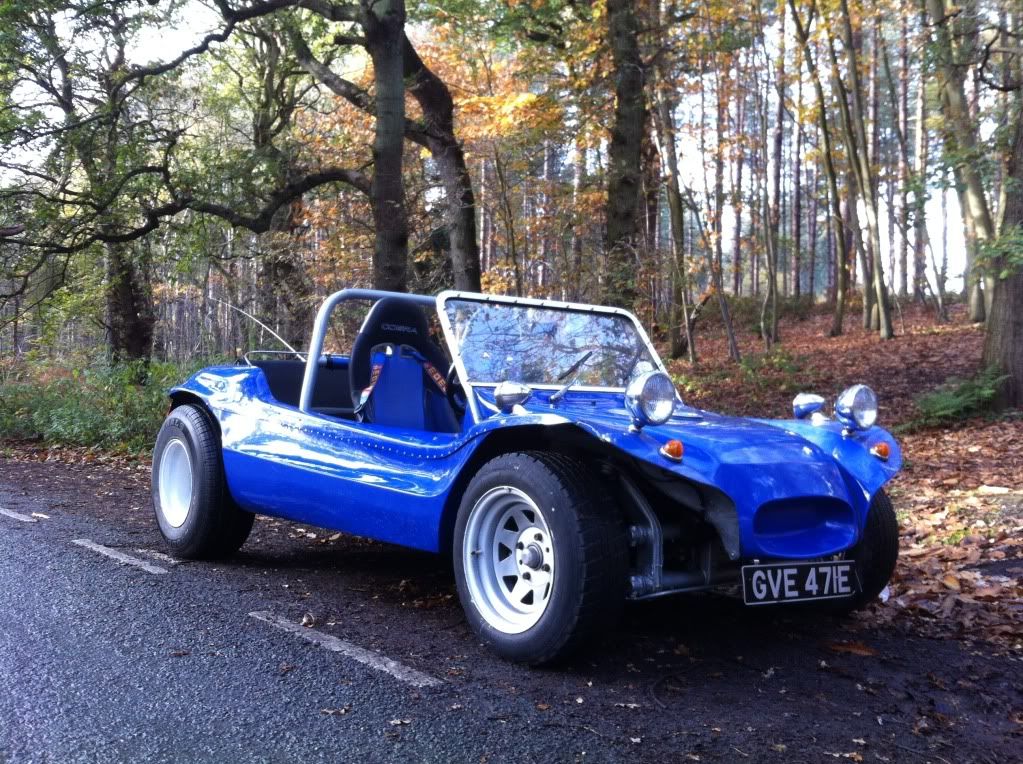

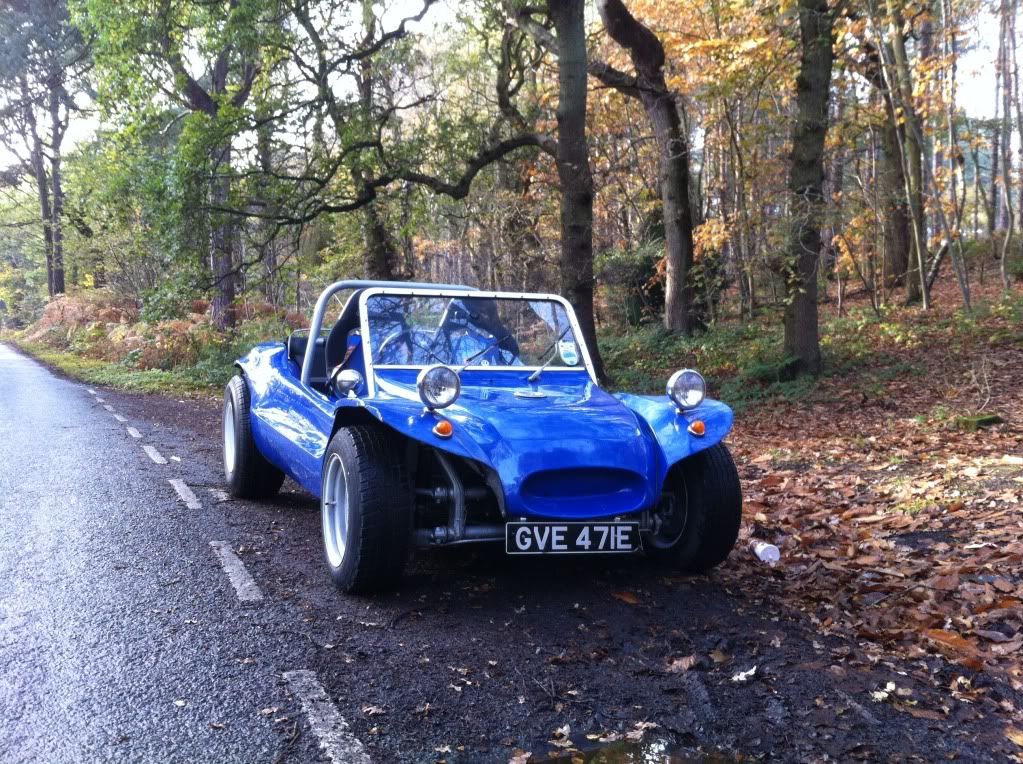

Heres one of it back at home


On the way home the dynamo light came on, and I started to worry what Iíd boughtÖ
However when I investigated this seemed to be the problem

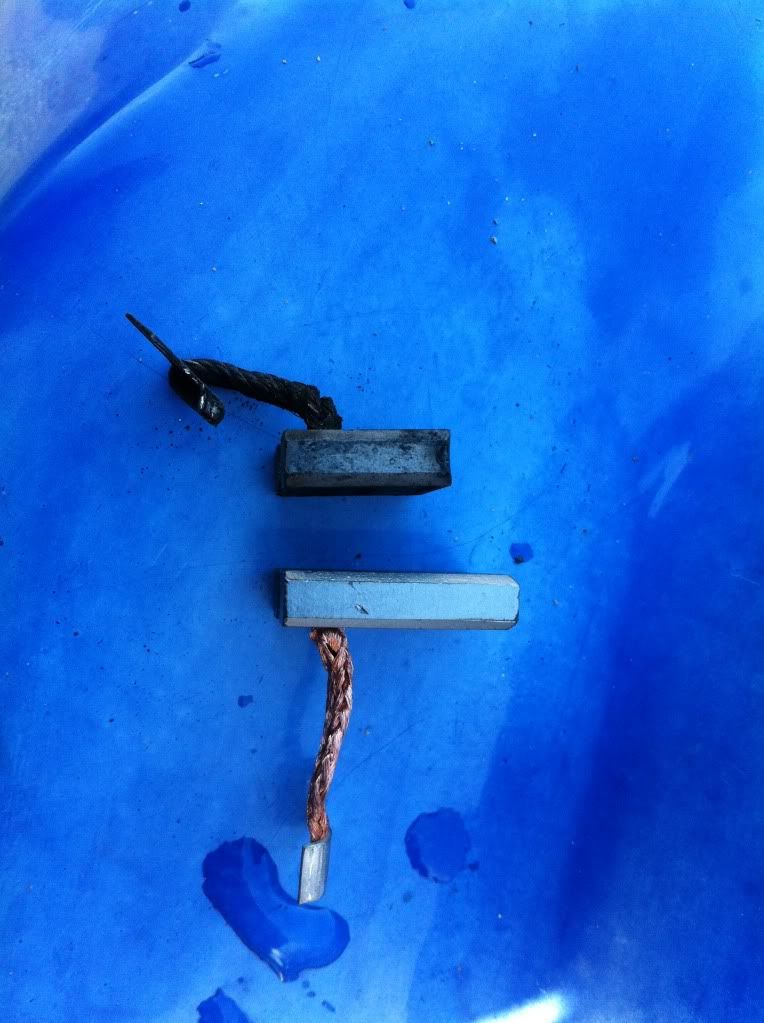

so the brushes were changed and I headed for a drive, and a opertunioty for some more photos

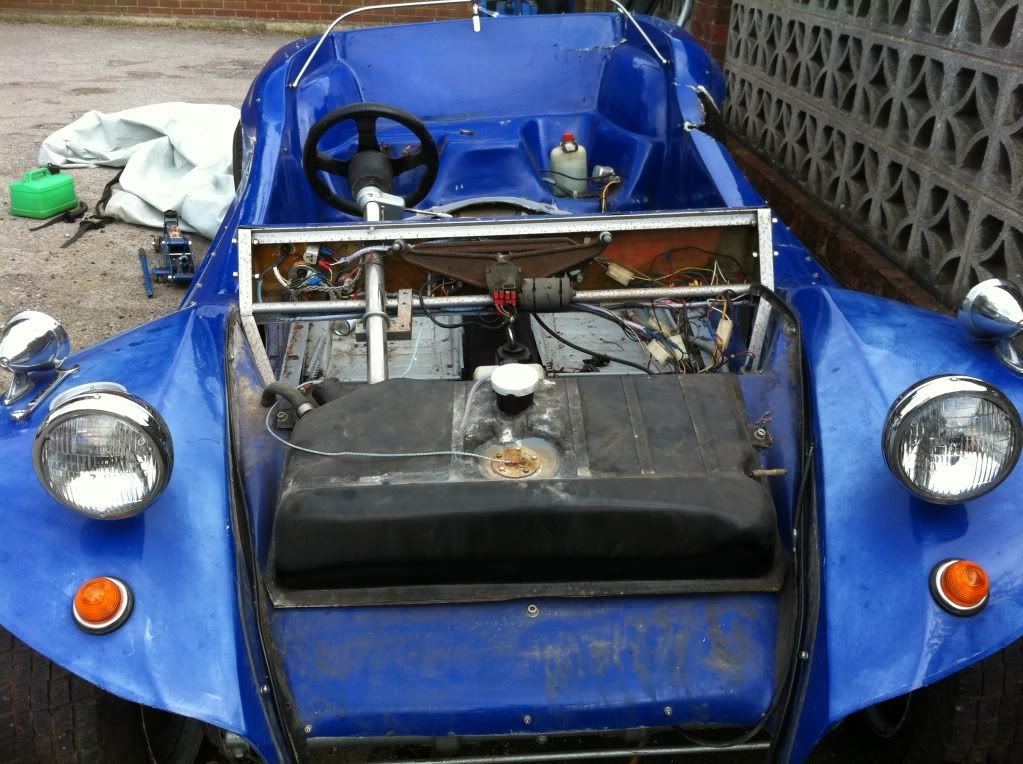

Next up on the list of things to sort was the exhaust, the engine was popping and farting and quite difficult to drive. The problem was the cannons were very rattlely and looking at the rear J pipe not attached!  :o
So the buggy was shipped of the Wrexham where Leon of Alunox crafted a new one. So the rear went from this

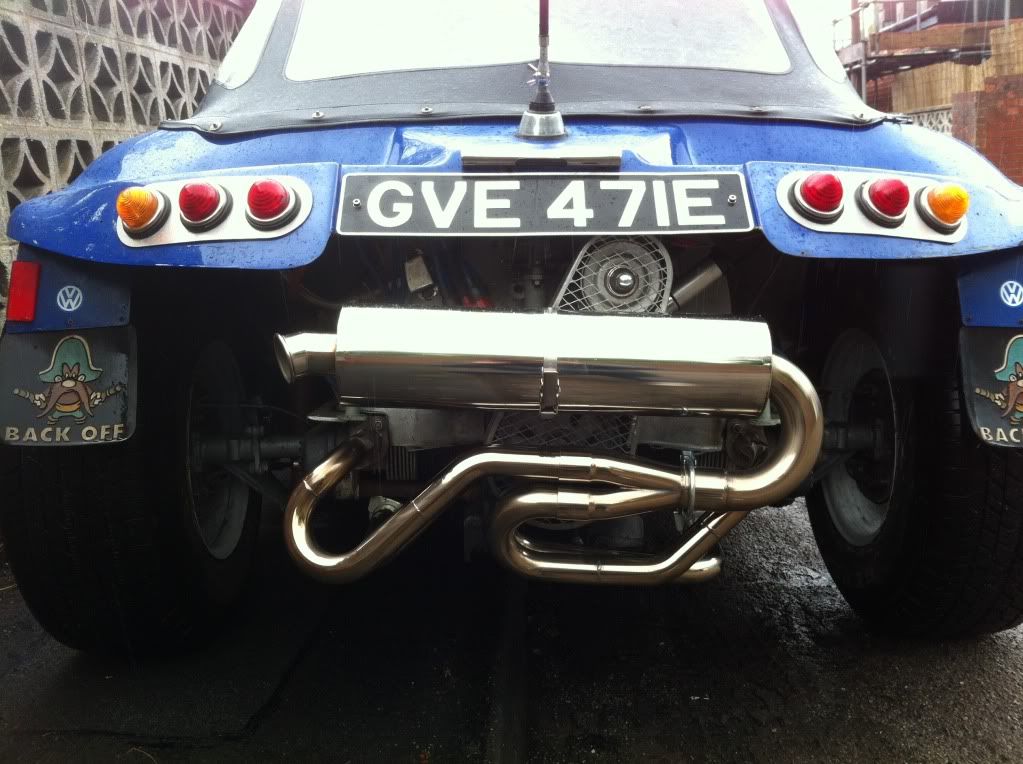

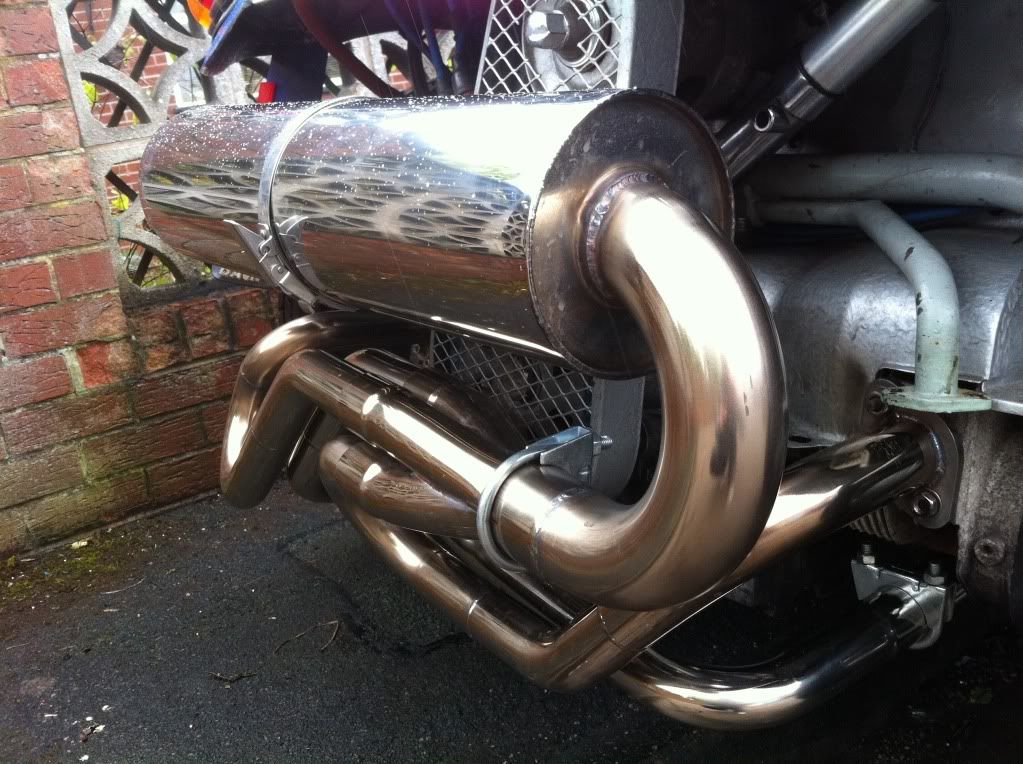

to this



and a video

The smoke will go away and is just from the manufacturing process.

Then disaster.. :-[ :-[ :'(

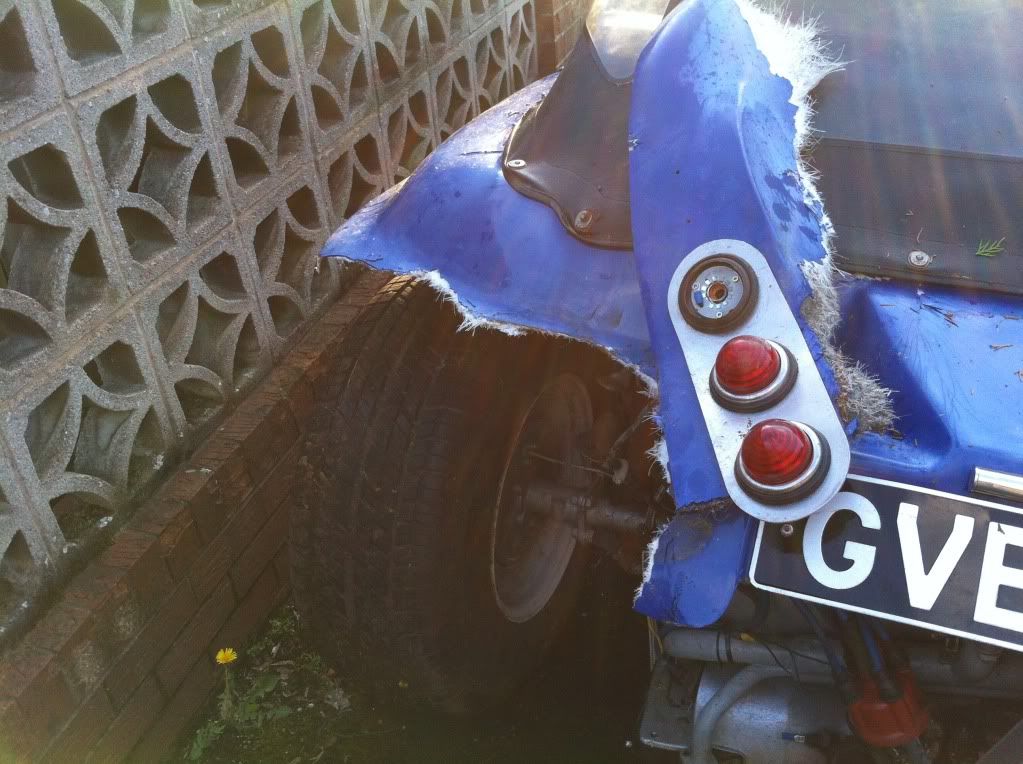

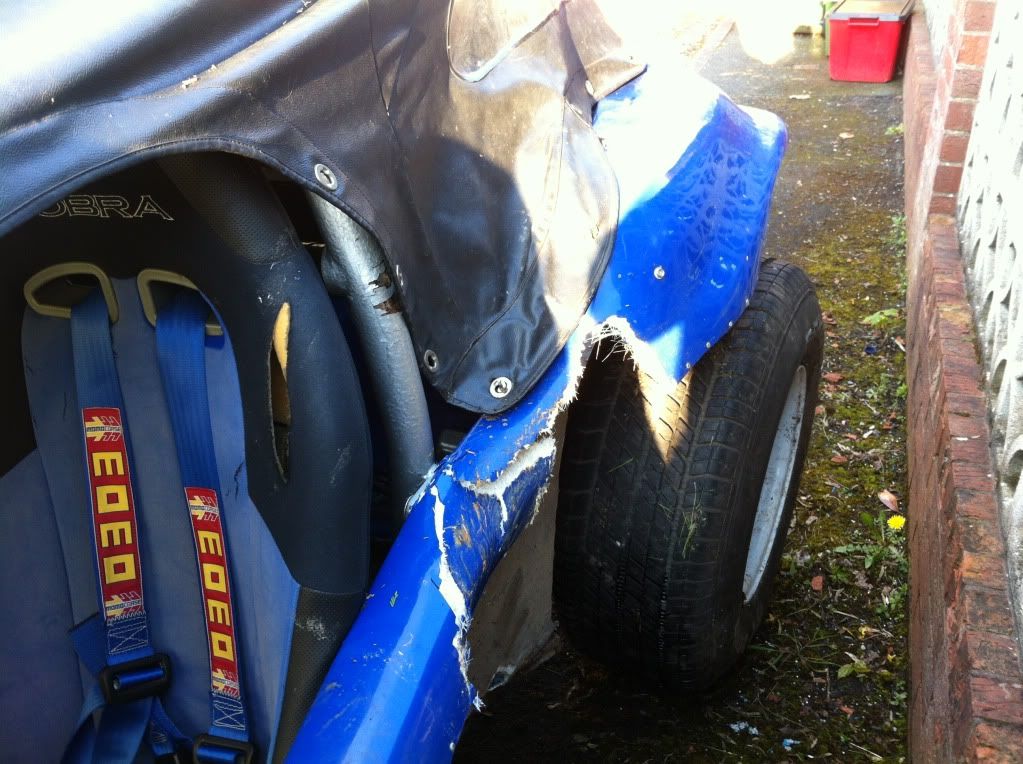

In the form of a slippery righthand bend, and a treeÖ this was not good and the buggy was rather damaged.
The lefthand side took the impact, the gearbox nose cone was snapped, the springplate bent and the chassis dented.





So the rebuilding process would start, with the help of Fran and his brother Mark we stripped the buggy back to get a better idea of the damage.

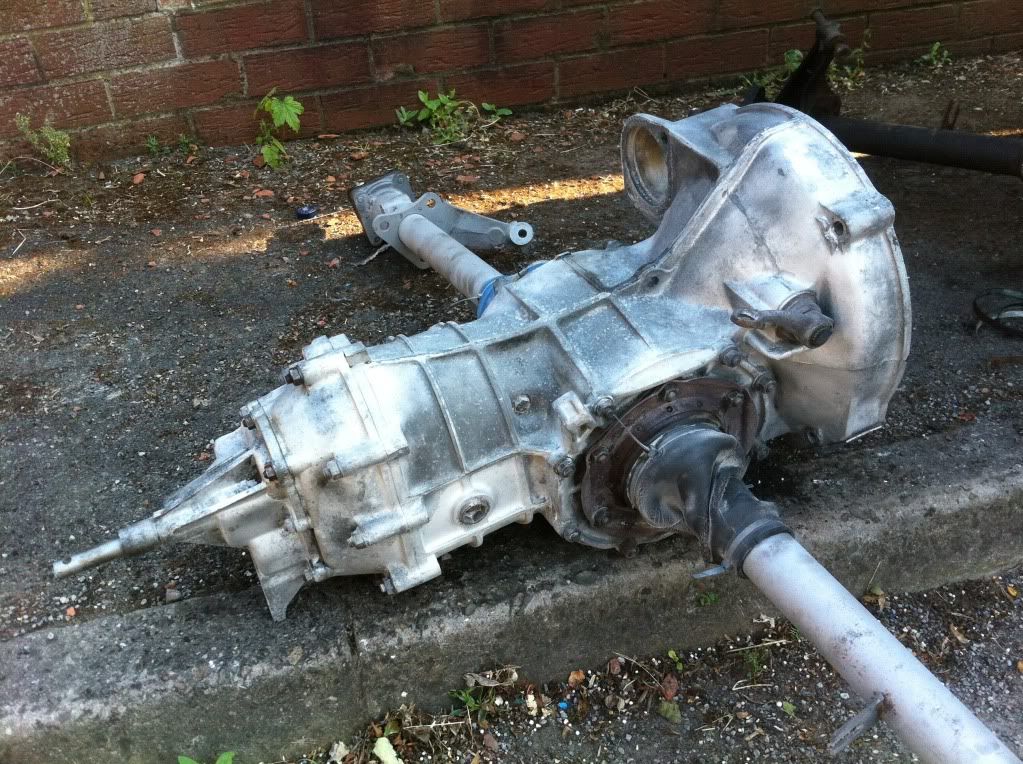

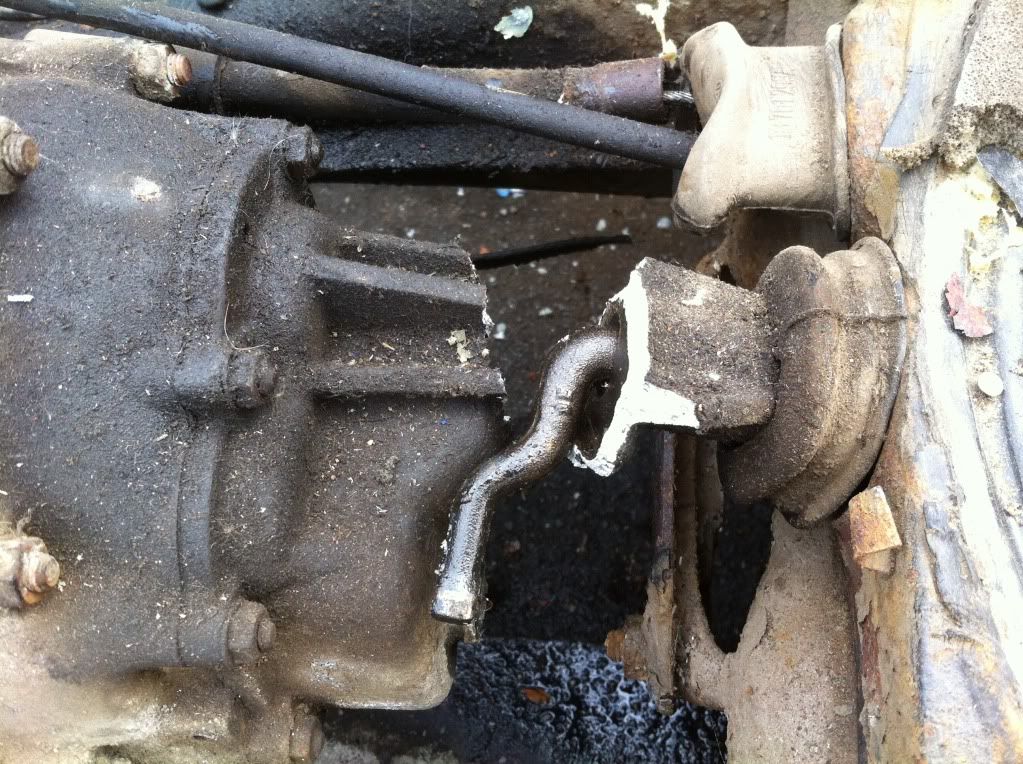

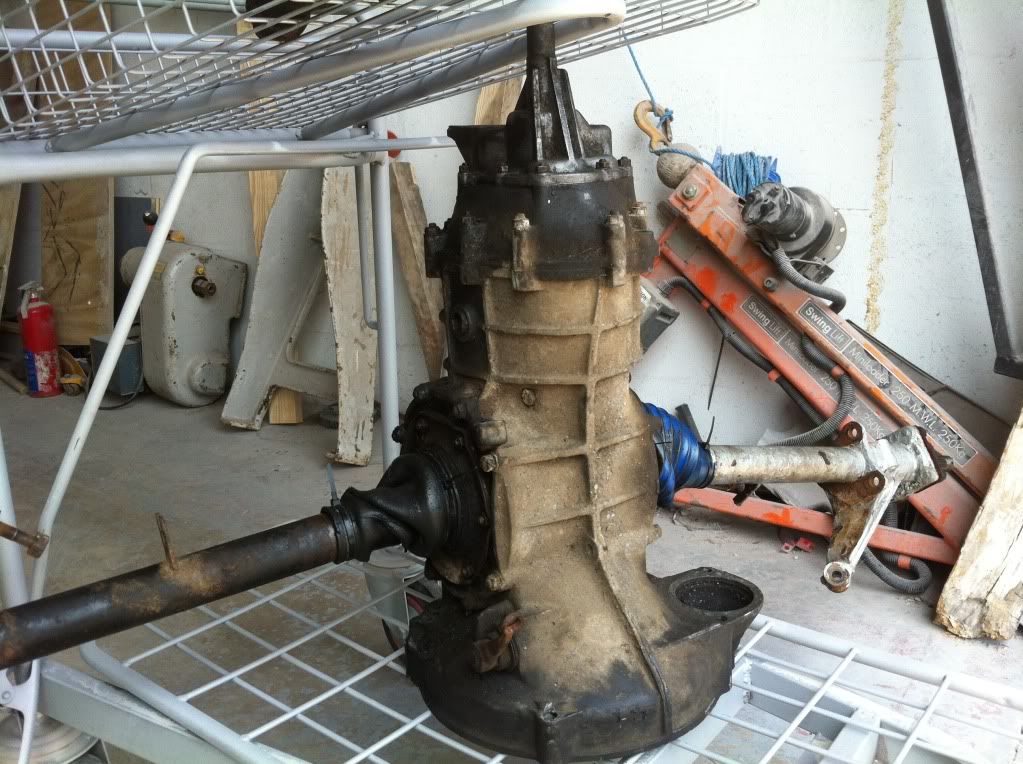

one broken nose cone


Thanks to David (manxdavid) I had a new nose cone and a gasket set

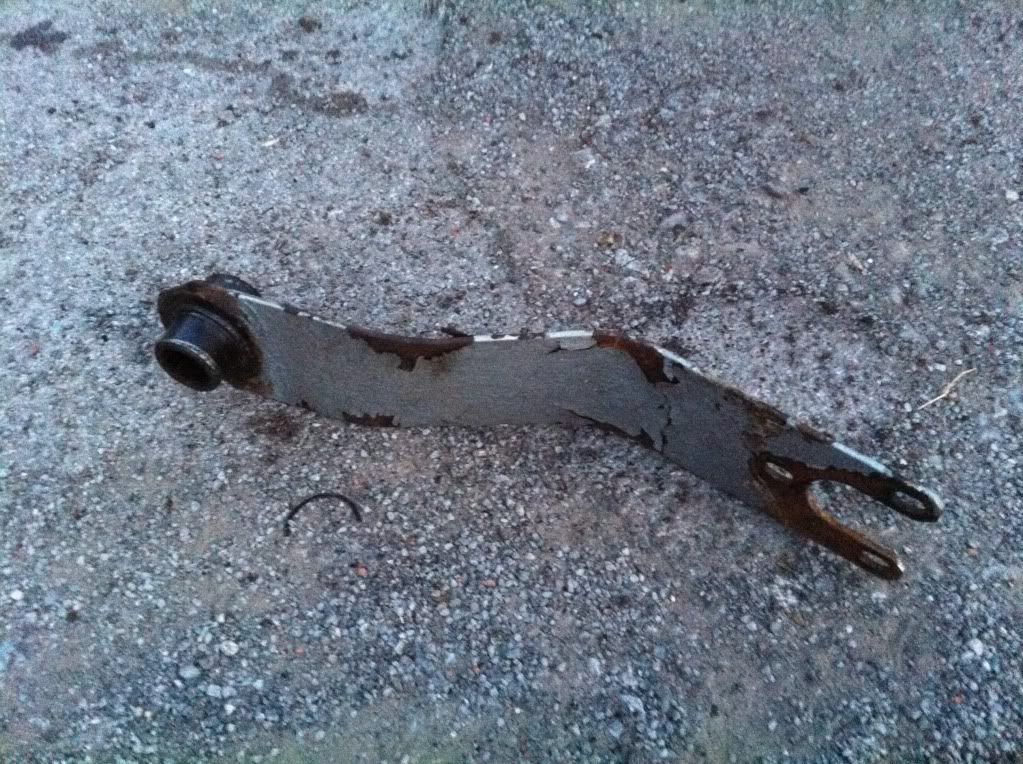

one bent spring plate


Luckily I had a set of adjustable springplates in the garage, so on these went


The axel tubes and axel didnít escape damage so this needed changing too

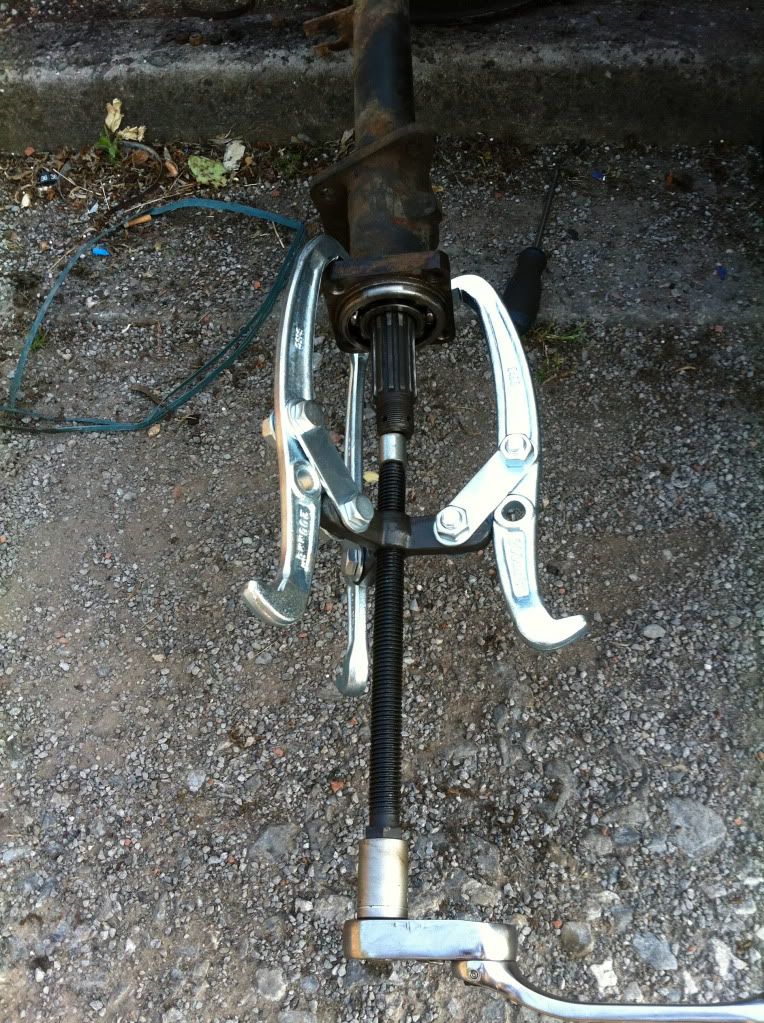

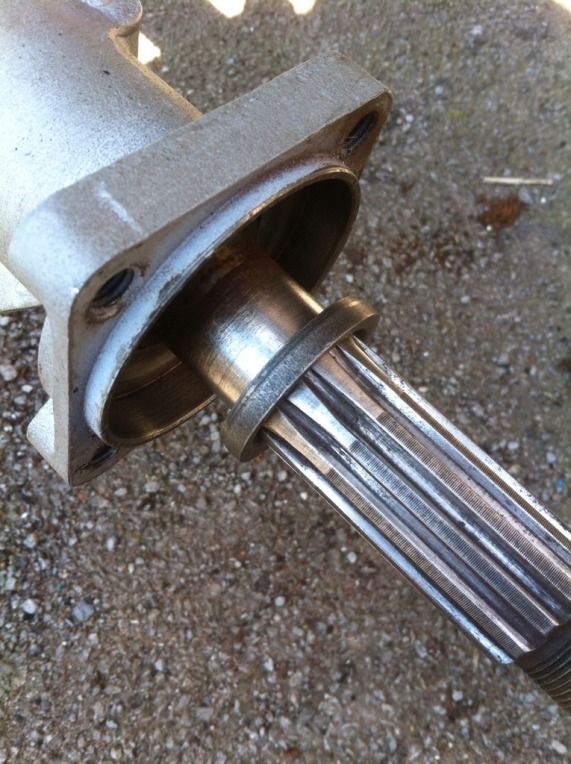

after much messing about trying to remove the big circlip to change the axel and tube it was done and the gear box was sent off for soda blasting to clear 40 years of crud off it.




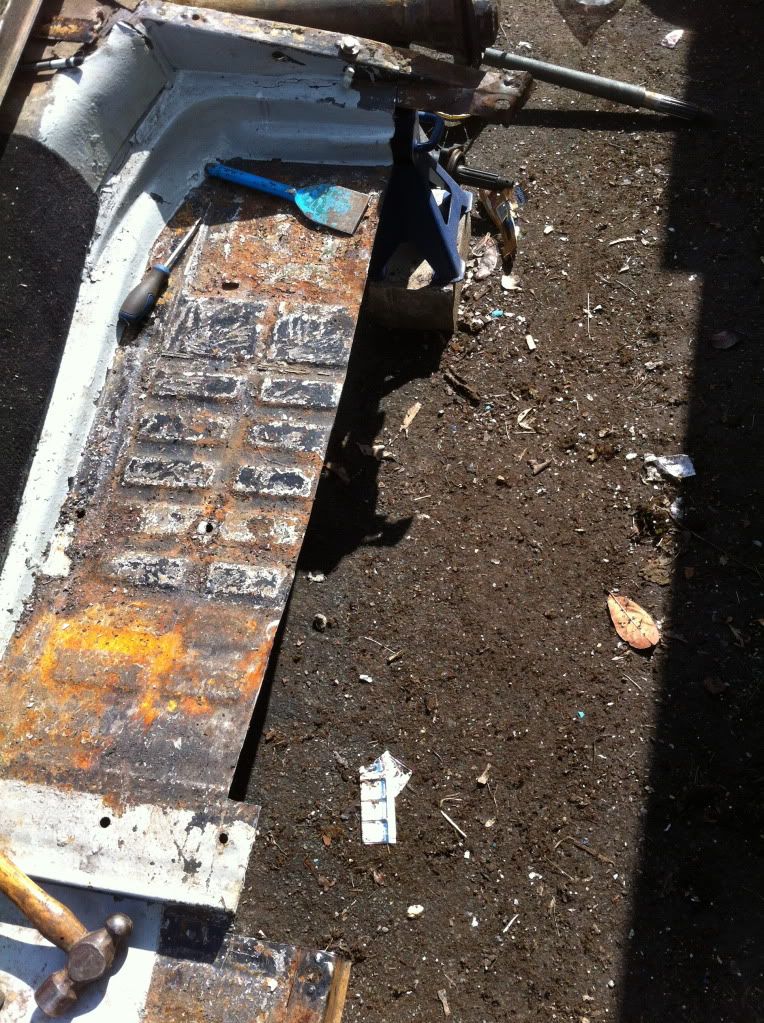

Next up was a look at the chassis

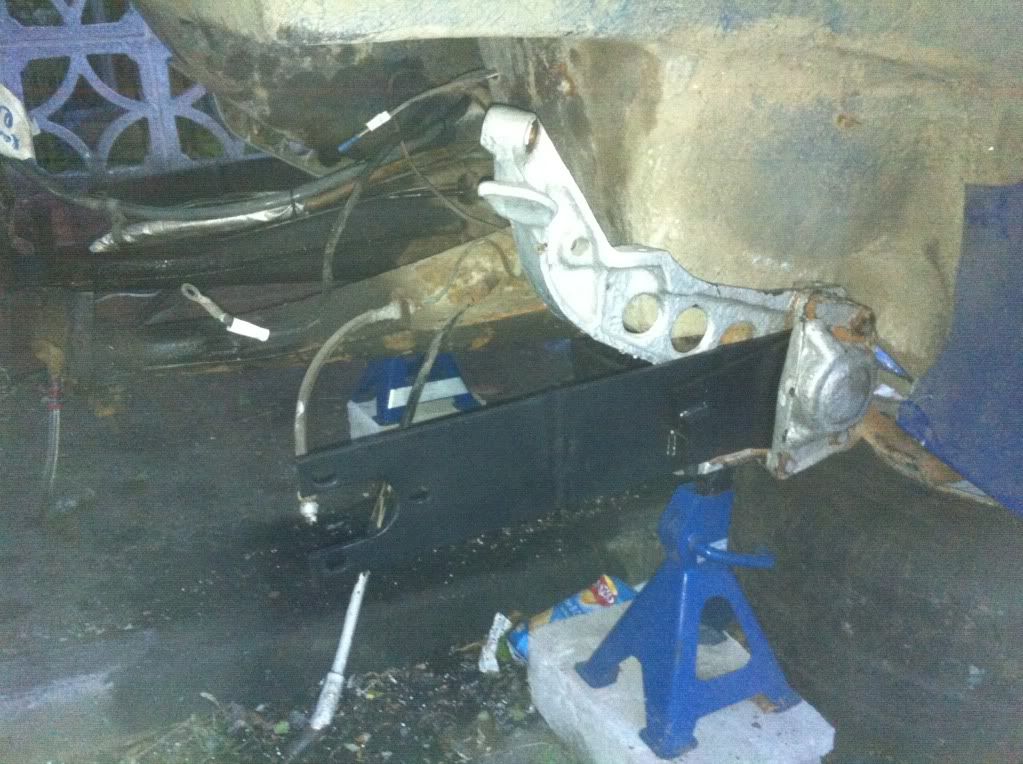

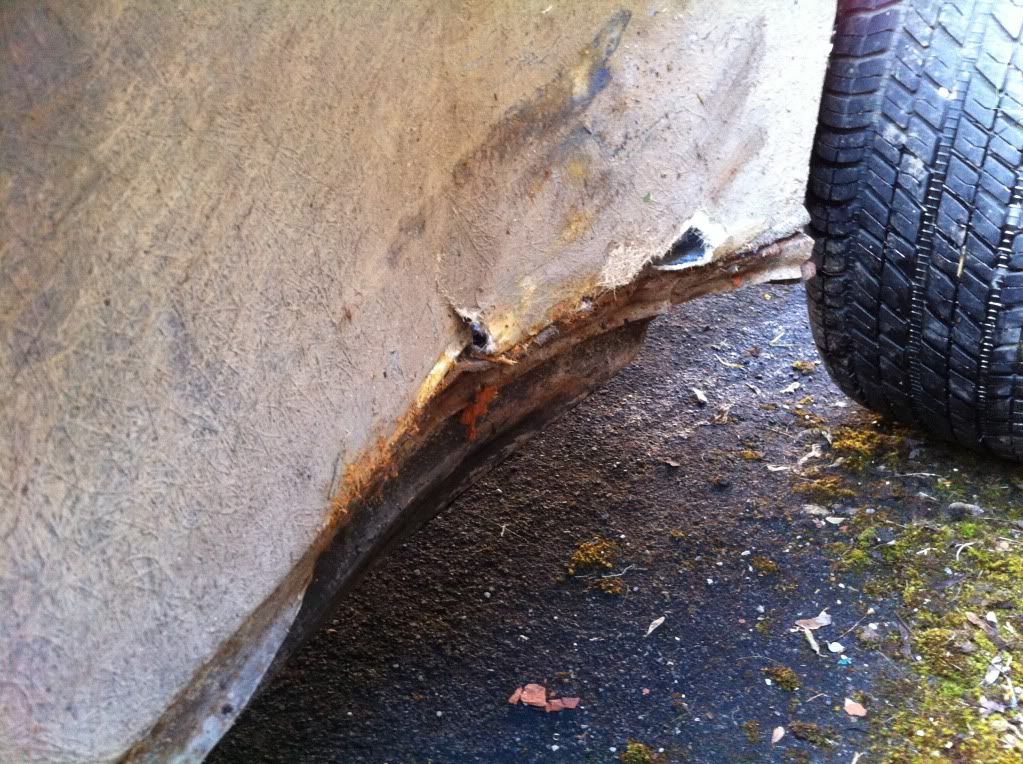

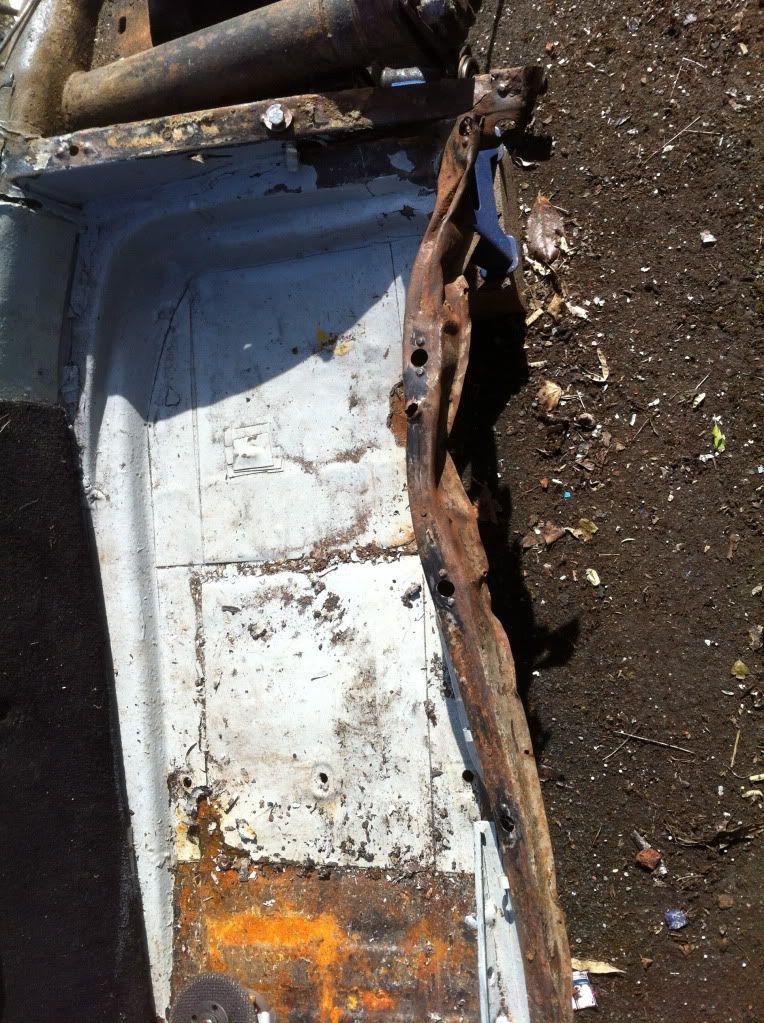

Here was the impact

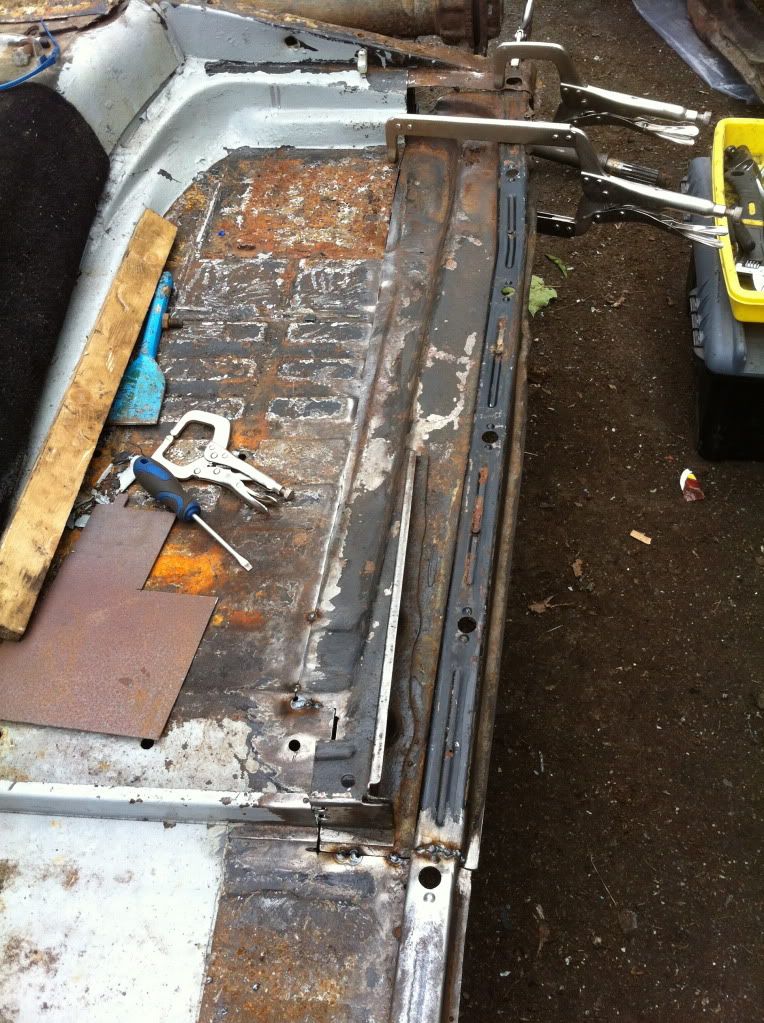

so the dented bit was cut out

and a new bit tacked in

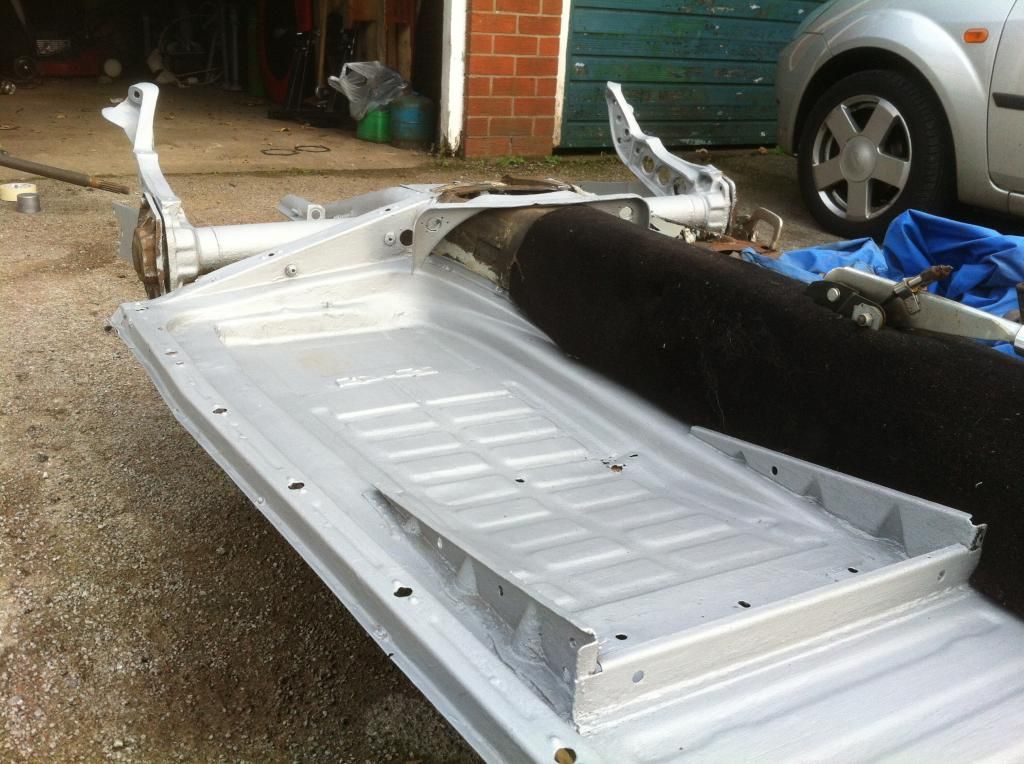

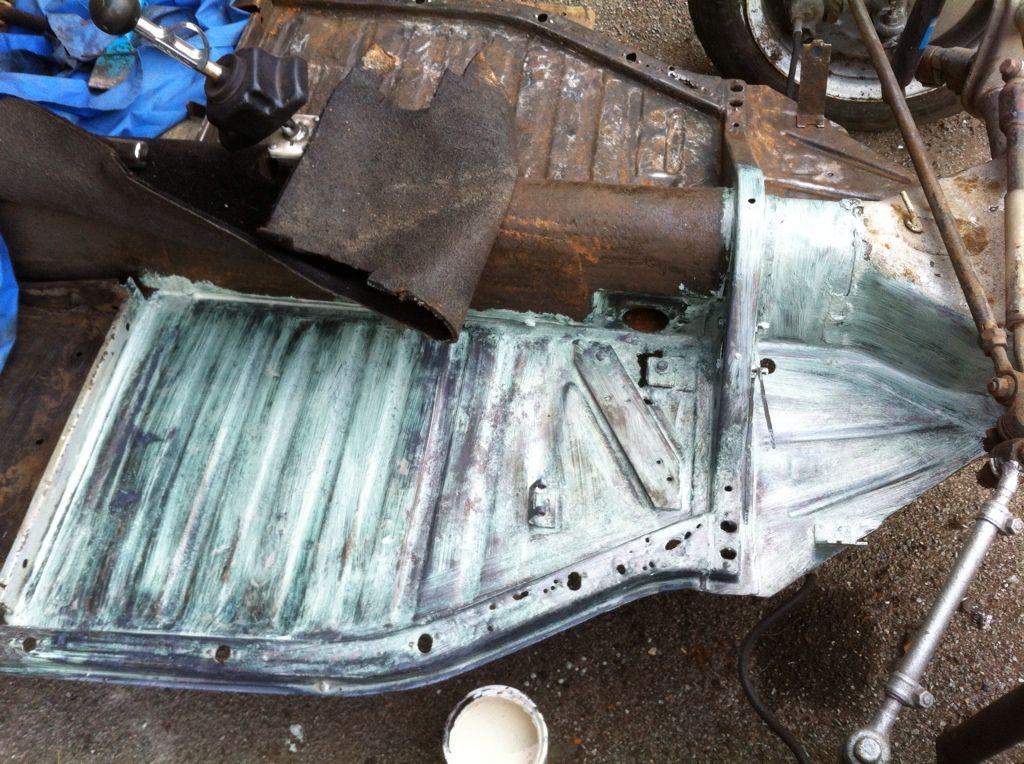

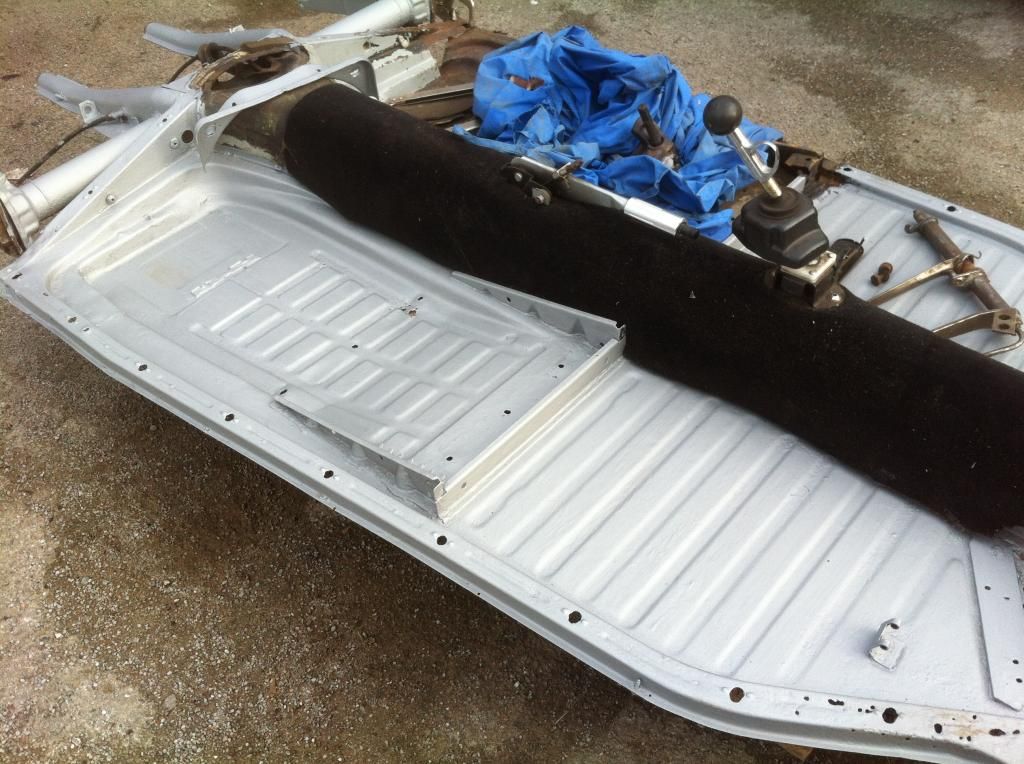

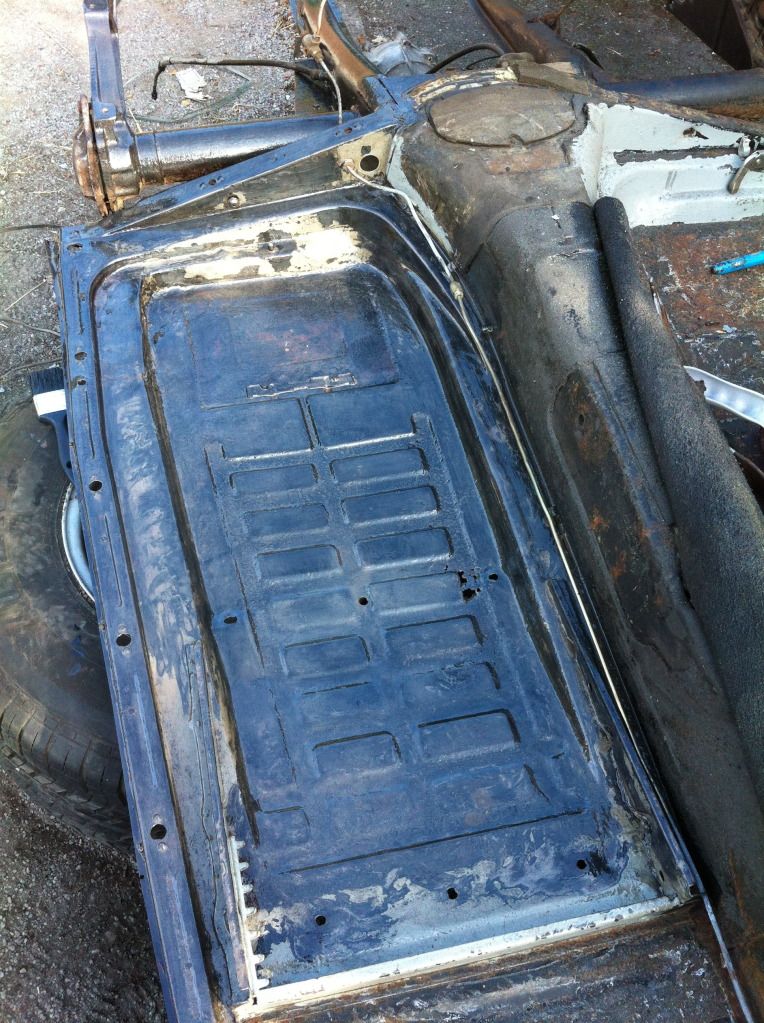

next the pan was treated to rust protector

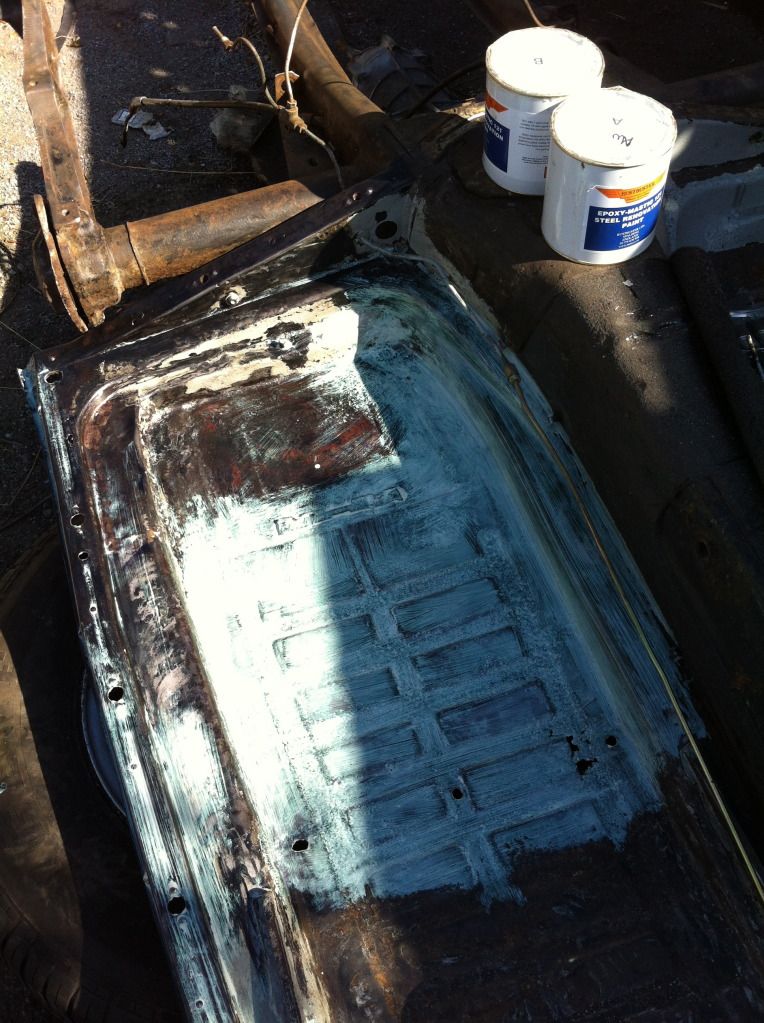

and painted with expoxy mastic 121



a couple of little repairs will be needed

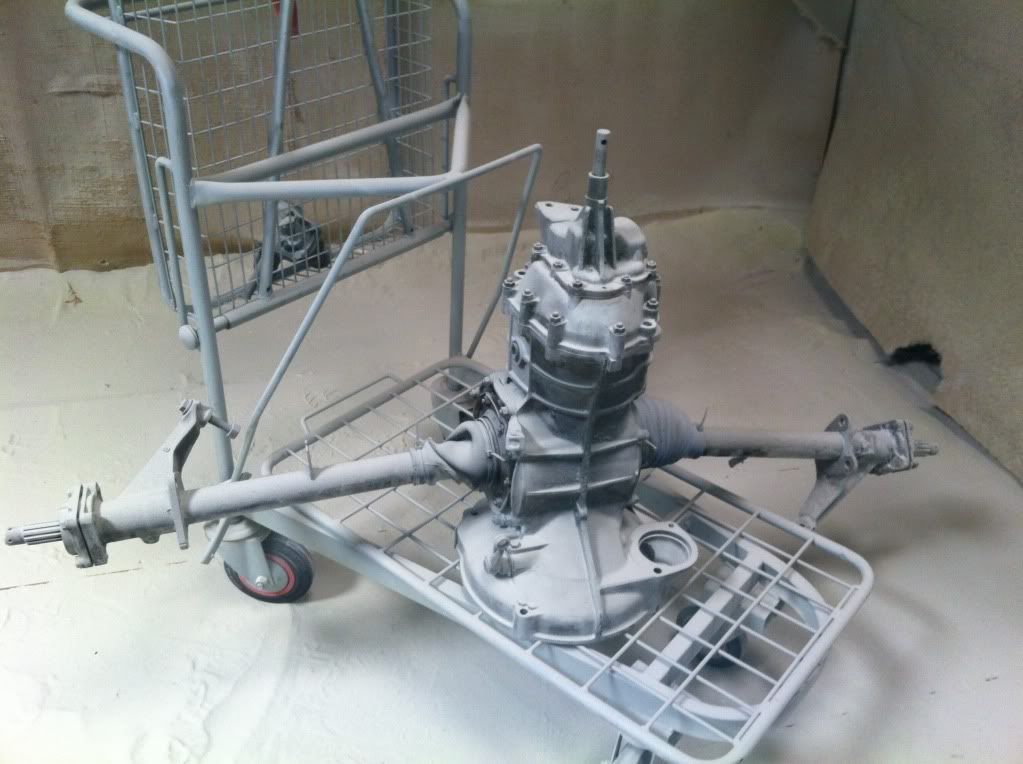

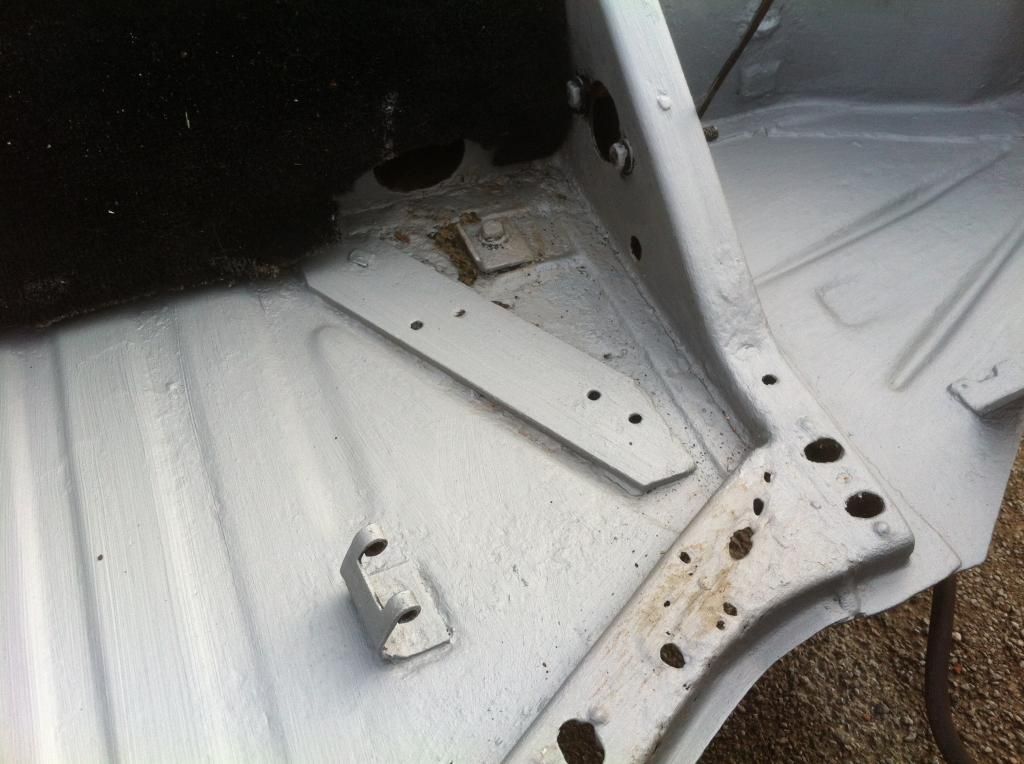

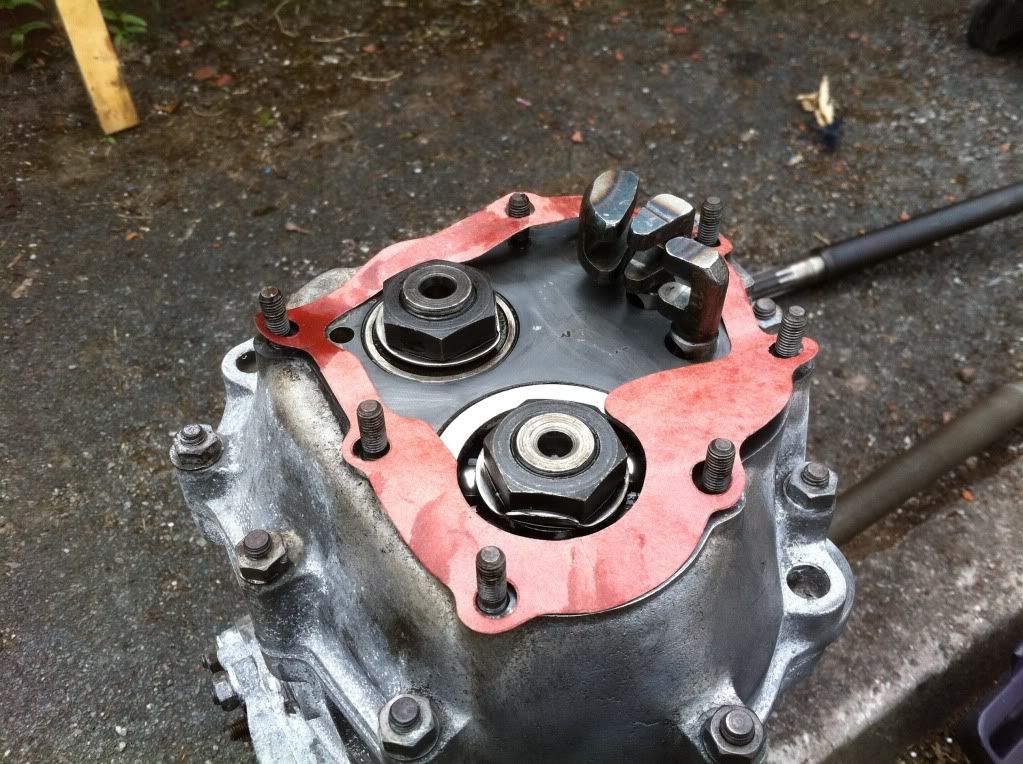

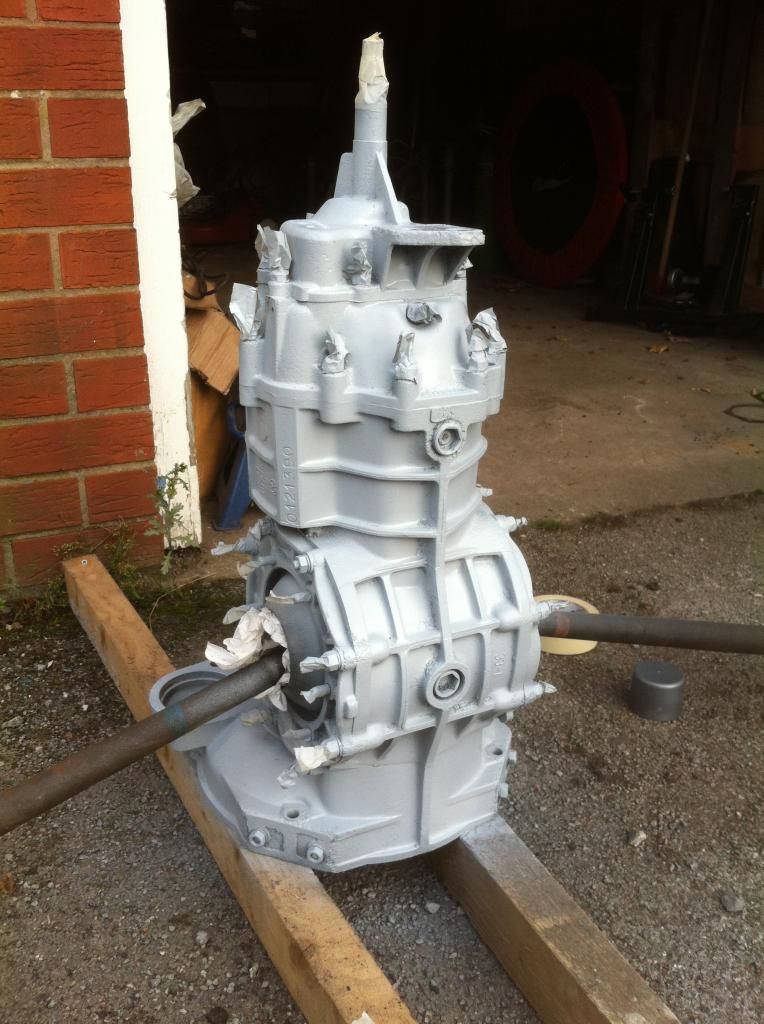

The gearbox was primed

and painted

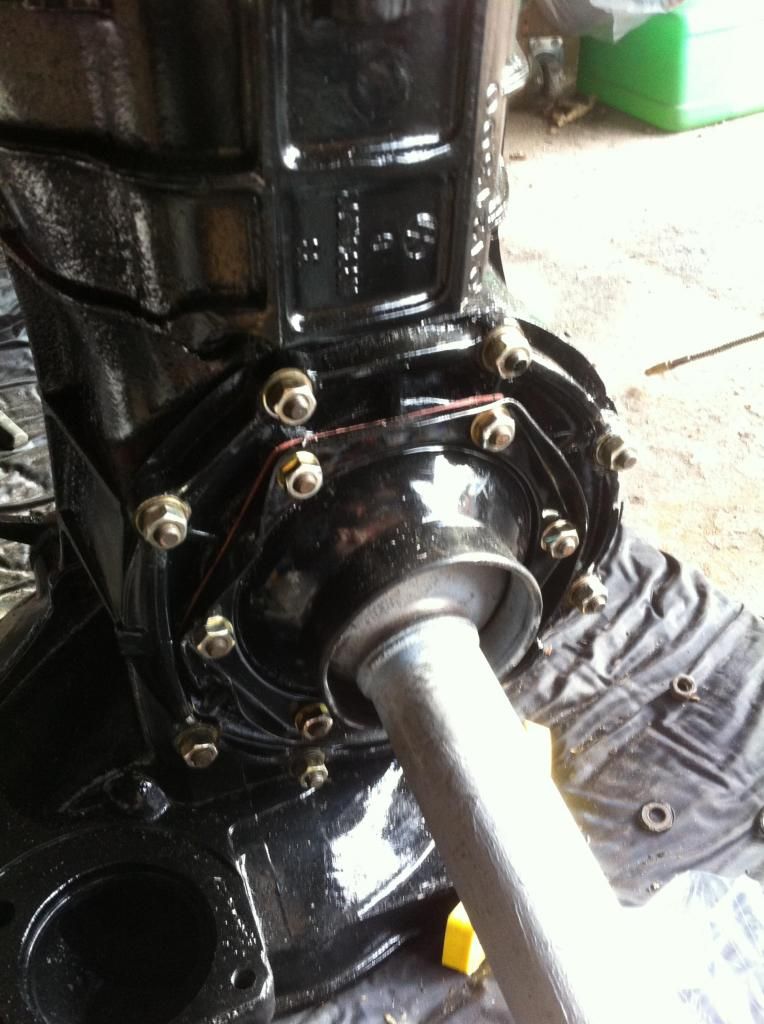

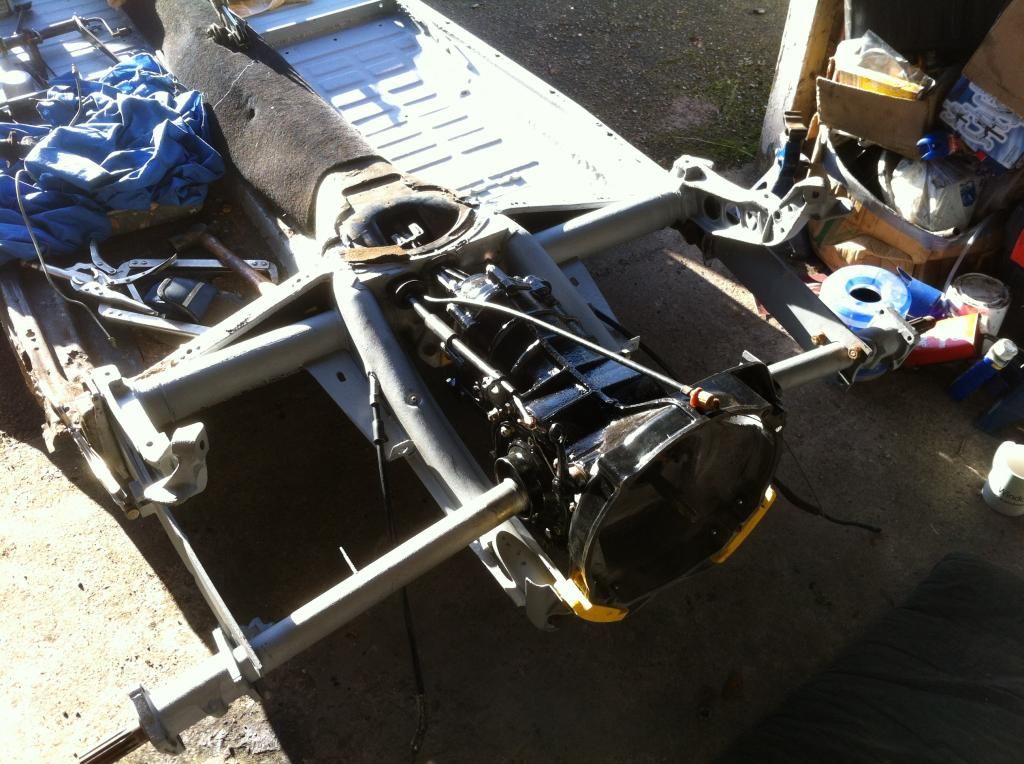

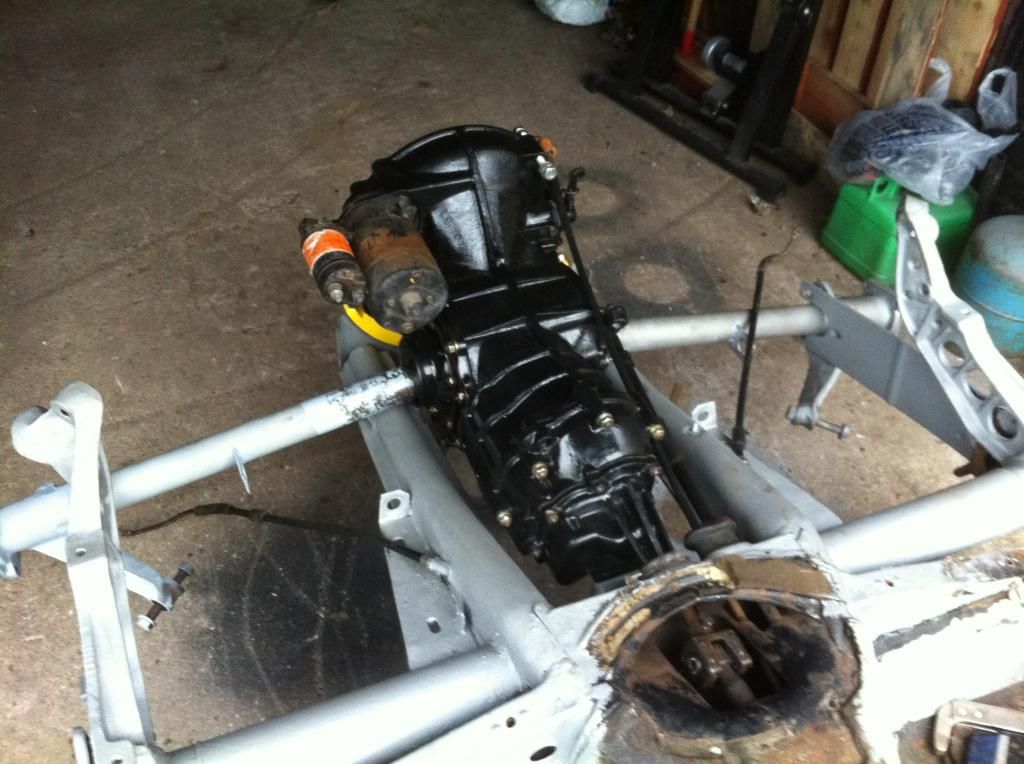

and re fitted

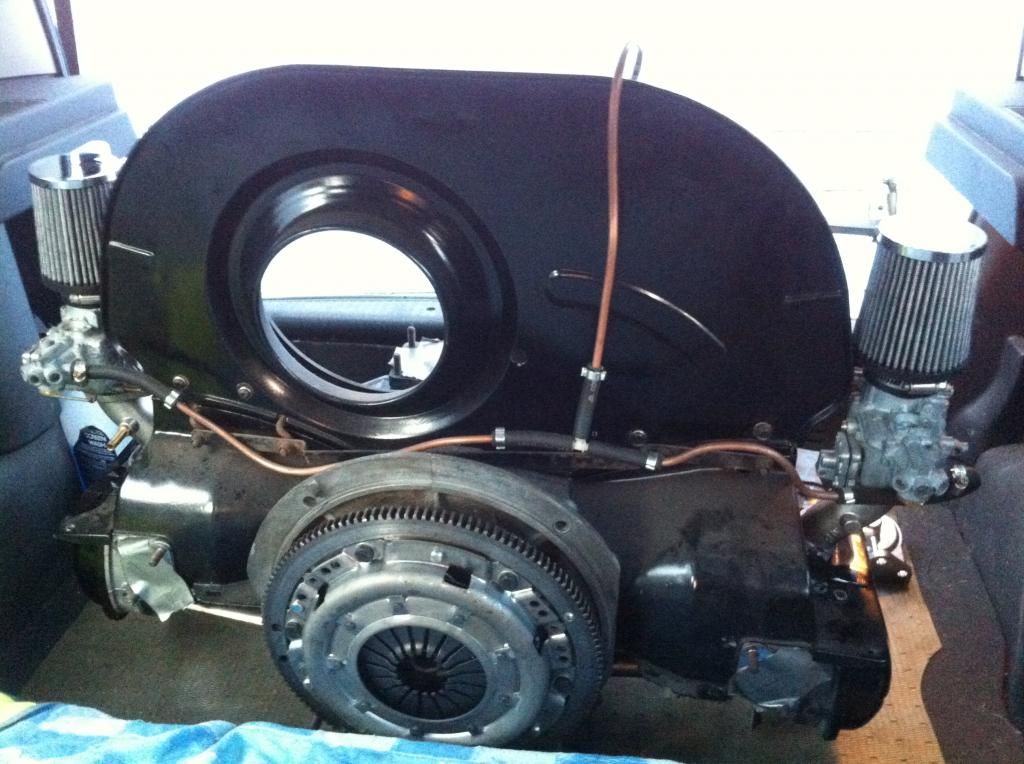

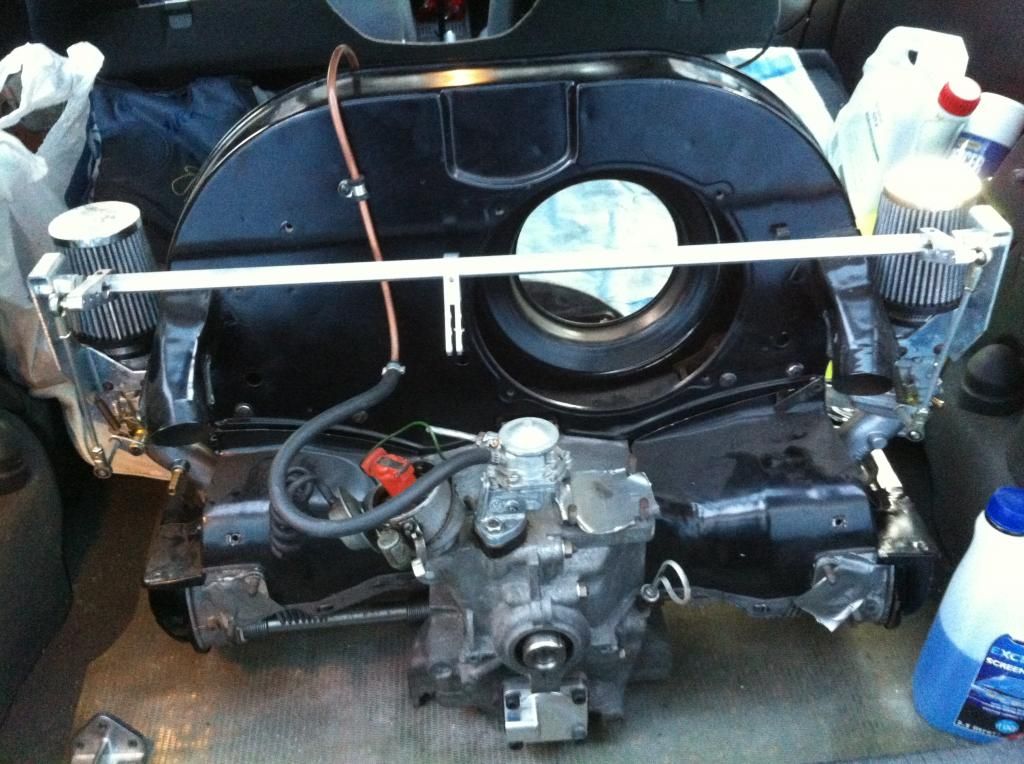

Then just what you need with a buggy not on the road, a new engine  :D ;D
1776 sp power, built by RNJ  Motorsport



Next up was to get the chassis rolling again so I needed to put the rear wheels on. I had a rear disk conversion kit that was in the garage and as it didnít sell a while back I decided to use it

Also took the opportunity to change the rear wheel bearings

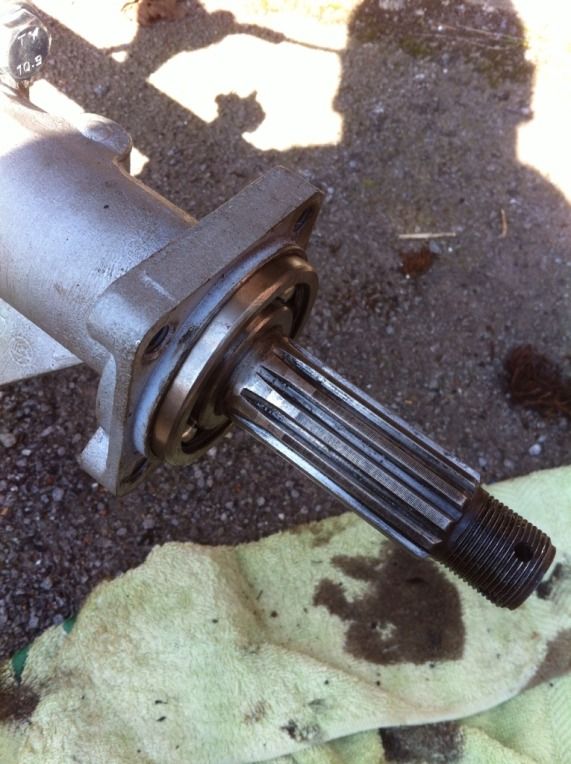

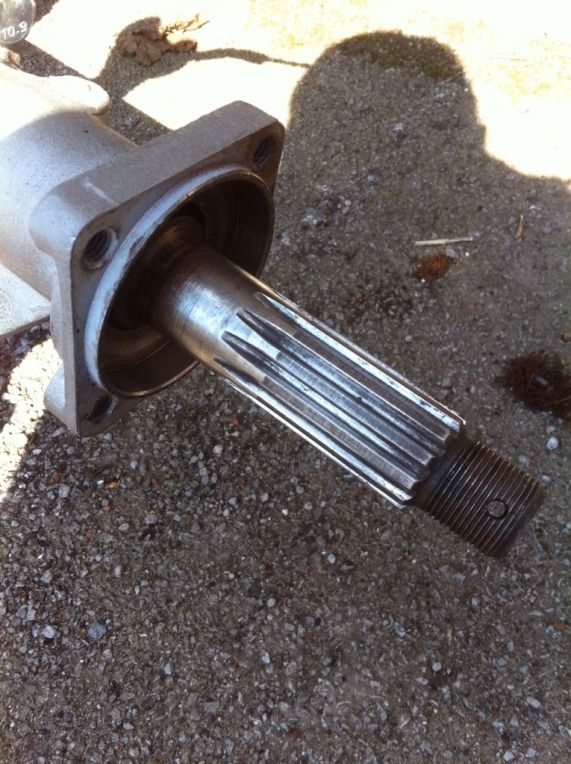

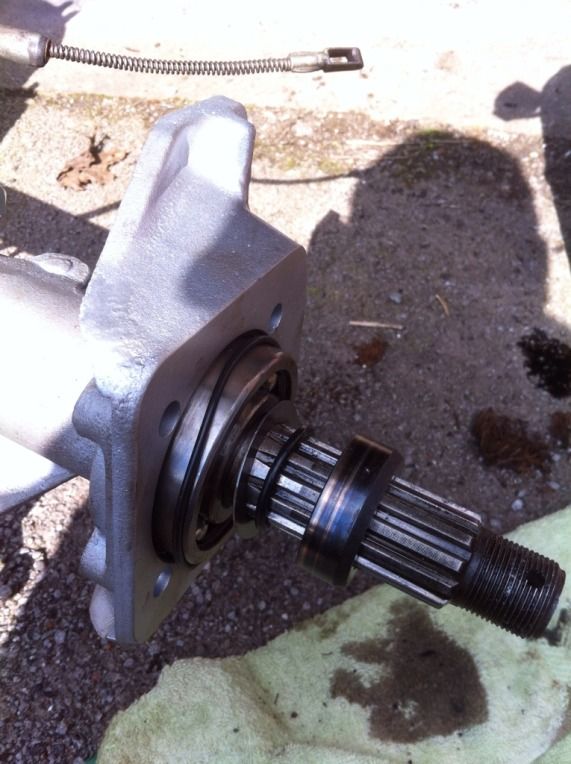

First the axel was cleaned up with some emery paper

Next the small spacer, not the flat side to the bearing, beveled side towards centre of the car

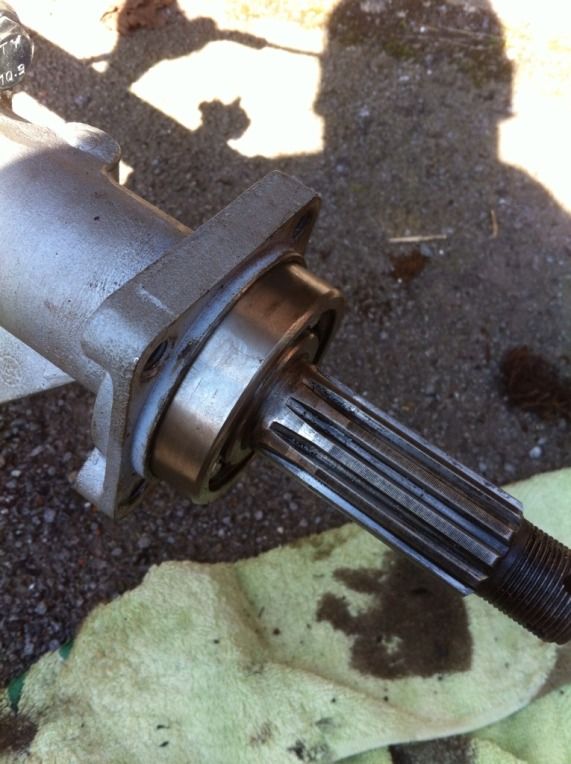

then the new bearing drifted on

this is the degree of movement I have, the bearing is only housed in the axle and I assume when the hub nut is torqued up it will all pull together

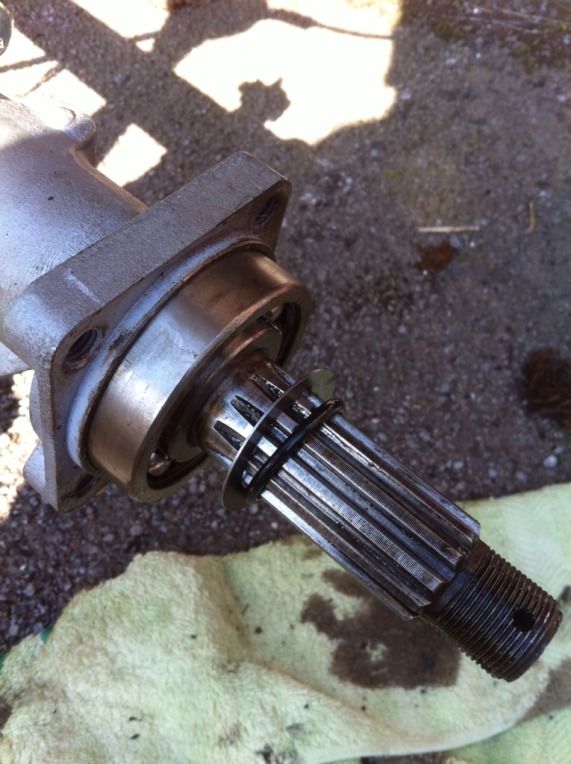

washer and small o ring

Larger spacer, note bevel on outer side, so internal bevel sits to seal o ring. Disk carrier and large o ring also

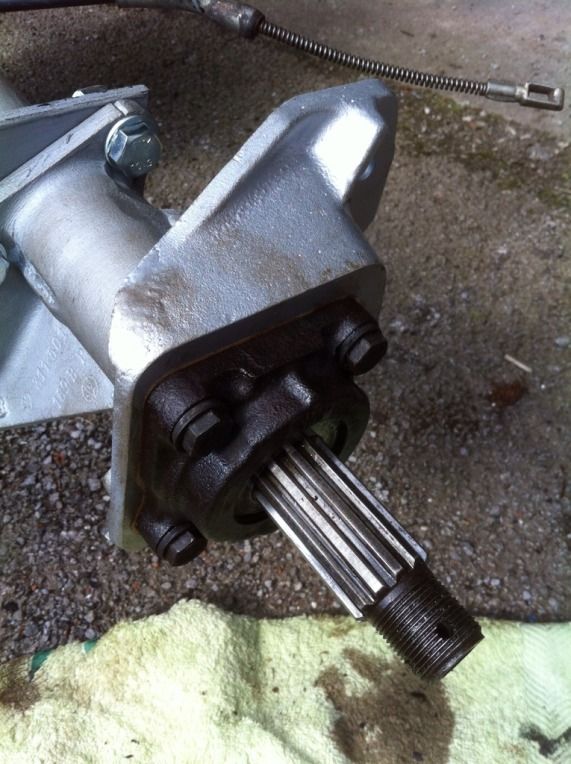

hub retainer on with new seal in too

now thereís a larger washer that I think Iíve missed out as part of the kit it goes after the seal in the hub carrier, but I will check and update when I get back out to the garage.

Thatís where Iím up to, thanks for reading
Dav
